Venn Diagram from Scientific Research

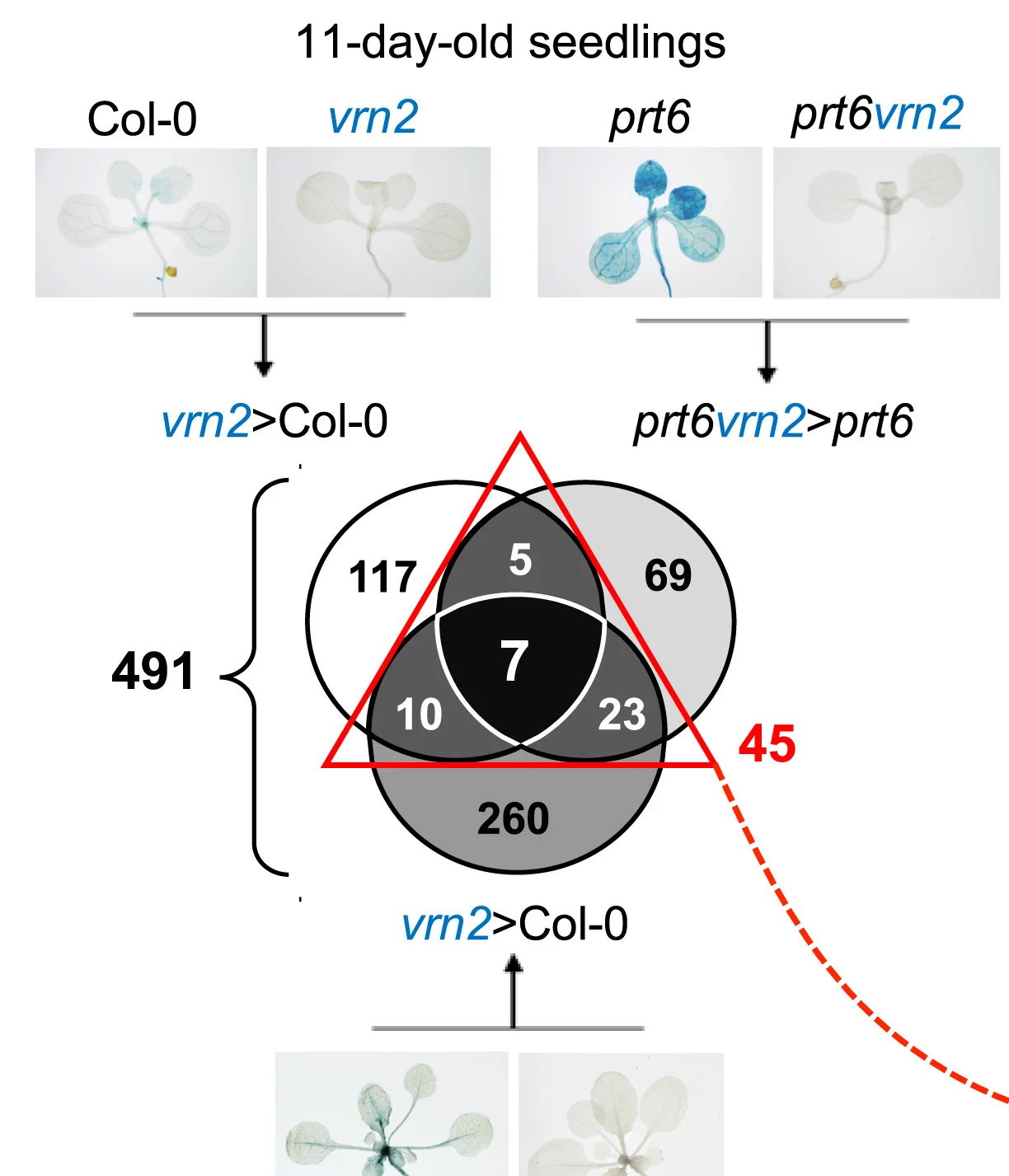

Schematic and Venn diagram describing the RNA-seq strategy and results in seedlings (top) and rosettes (bottom). A total of 491vrn2-5upregulated genes were identified across the three comparisons, of which 45 (red triangle) were observed in at least two comparisons. Histochemically stained plants indicate localization of VRN2-GUS in respective mutants for descriptive purposes.
