Line Plot from Scientific Research

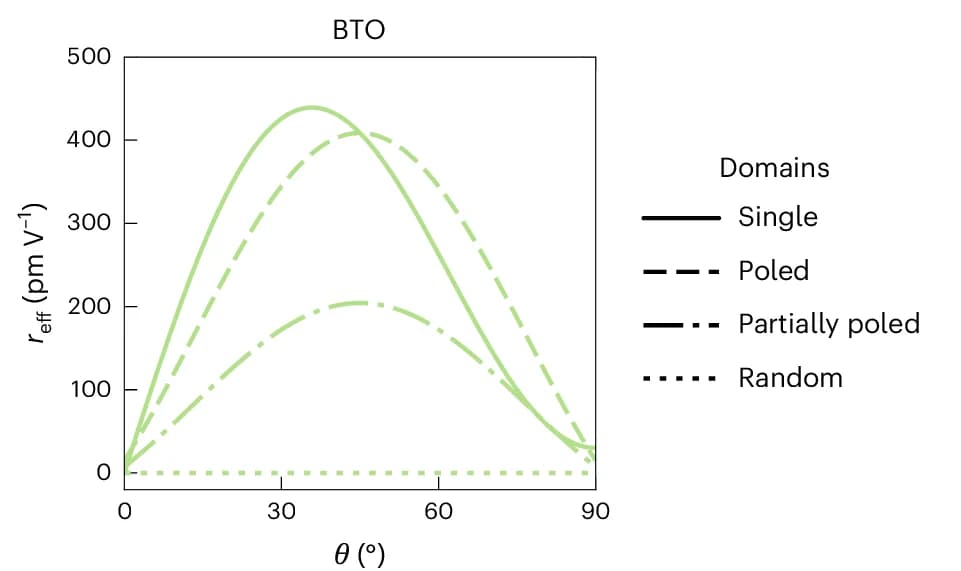

Analytically calculated effective Pockels coefficients according to equation ( 4 ) for BTO ( c ). The solid line shows the case in which all the domains are oriented in the same direction ( ν φ =0° = 1). The dashed and dotted lines show the case for films with domains oriented at 90° to each other, in which the domains are fully poled (dashed), partially poled (dotdashed) or randomly distributed (dotted).
