Heatmap from Scientific Research

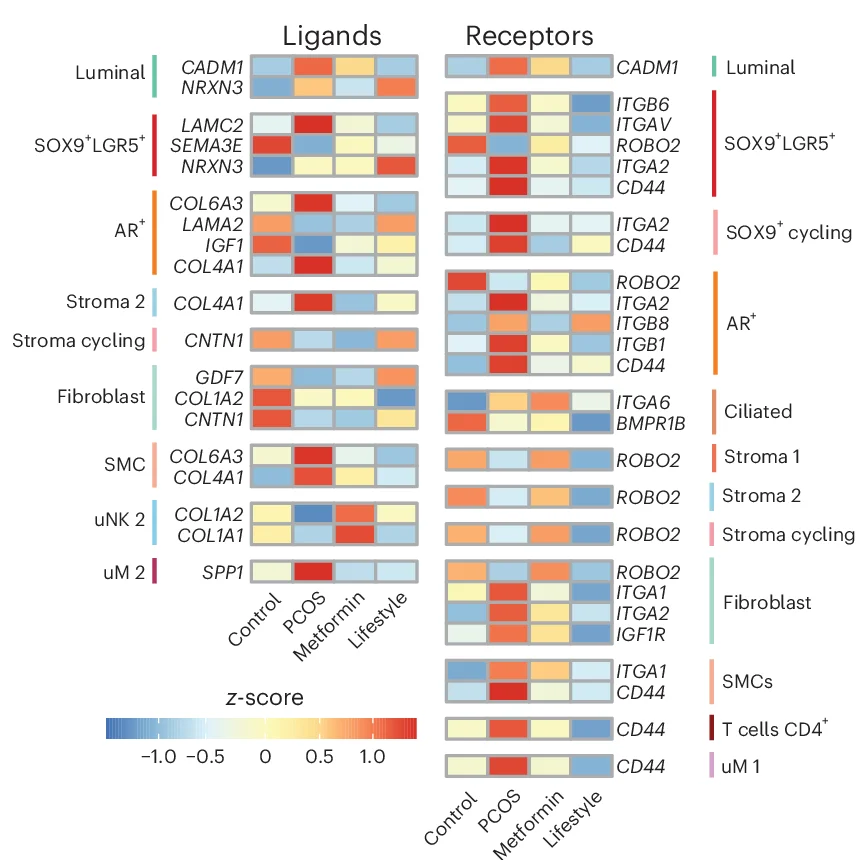

Heatmap of genes encoding ligands and receptors that are reversed after metformin or lifestyle treatment compared with PCOS. The colored bars on the side of the heatmap indicate to which cell subpopulations the genes belong. The colors of the blocks in the heatmap represent the z -score, that is, a scaled average of log(transformed) gene expression.
