Bar Plot from Scientific Research

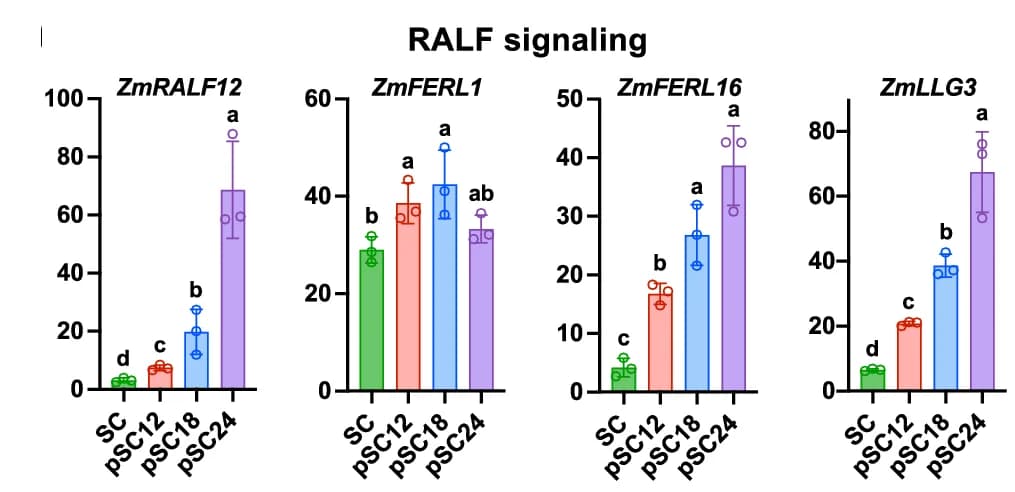

Expression of RBOH and RALF peptide/receptor genes during fertilization and persistent synergid degeneration. Transcript levels are shown as FPKM values (means ± SD) of three biological replicates. For statistical analysis, count data at the gene level were analyzed with DESeq2 64 . Stage-to-stage comparisons were performed and corrected for multiple testing over all genes and cell stage comparisons using false discovery rate (FDR). Letters above bars indicate significant differences (adjusted P < 0.05).
