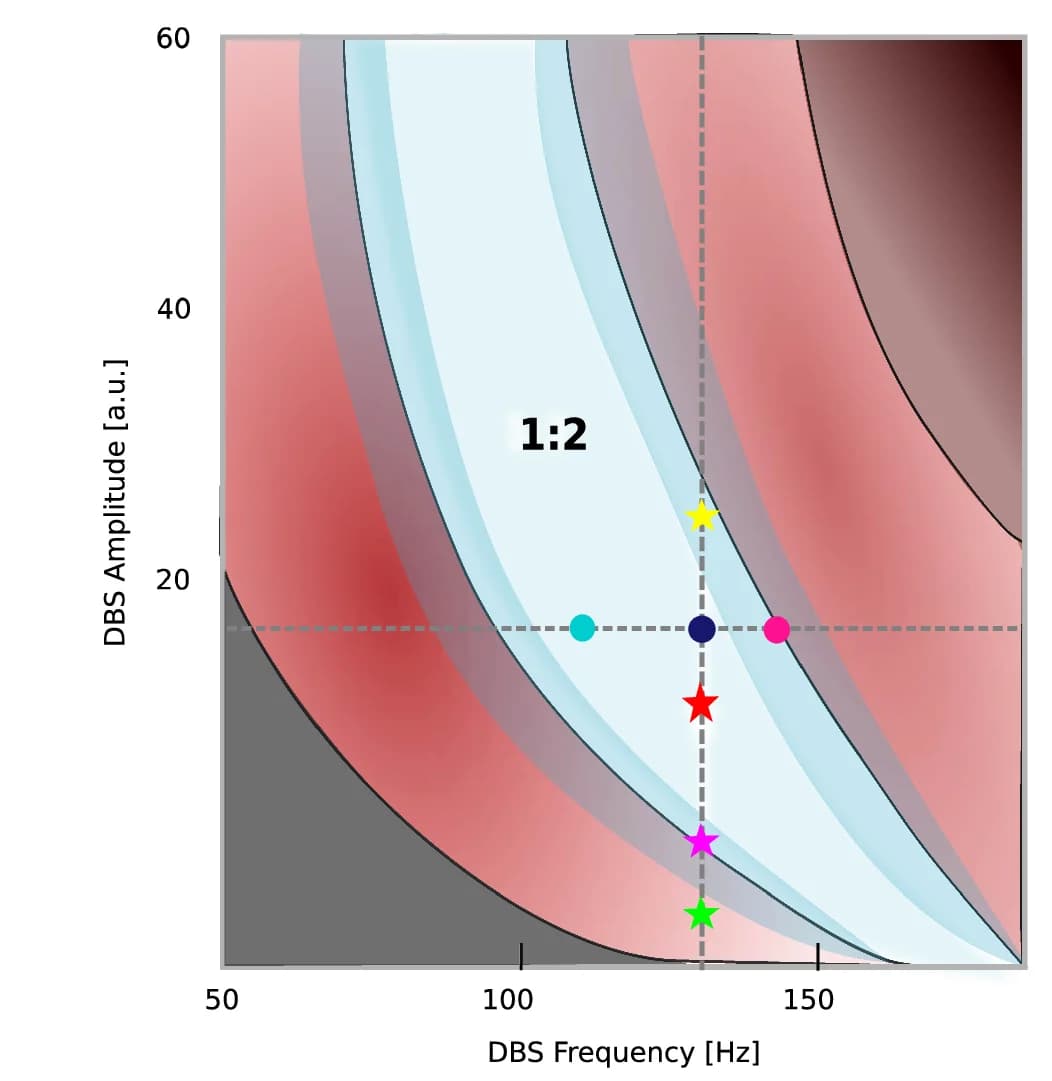

Left: Schematic representation of Arnold tongues, explaining the occurrence of 1:2 entrainment depending on deep brain stimulation (DBS) frequency and amplitude. At a stable DBS frequency (dashed vertical line indicates 130 Hz), 1:2 entrainment results from a certain range of DBS amplitudes (marked by the white area and the red star). Amplitudes in the lower or upper borders of this area (yellow and magenta stars, respectively) have a lower likelihood of causing 1:2 entrainment. The varying borders of the white area represent the dynamical nature of these borders based on neural noise. Amplitudes outside of the white area (e.g., the green star) do not cause 1:2 entrainment. This concept is depicted in the right spectrogram: Spectrogram of exemplary patient stimulated continuously at 130 Hz. The stars on the spectrogram correspond to different DBS amplitudes falling within distinct regions of the frequency-amplitude space defined by the Arnold tongue. At 1.0 mA, 1:2 entrainment is not fully present, but at 1.5 mA, it becomes noticeable, disappearing again at 2.0 mA. Similarly, at a stable DBS amplitude (dashed horizontal line in left illustration), there is a varying likelihood of 1:2 entrainment to be induced by different DBS frequencies. DBS frequency at 110, 125, and 145 Hz are denoted with turquoise, blue, and magenta dots respectively. This is shown in group power spectra of 1:2 entrainment in different DBS frequencies (right bottom plot). Shaded areas around the power spectra denote the standard error of the mean.
