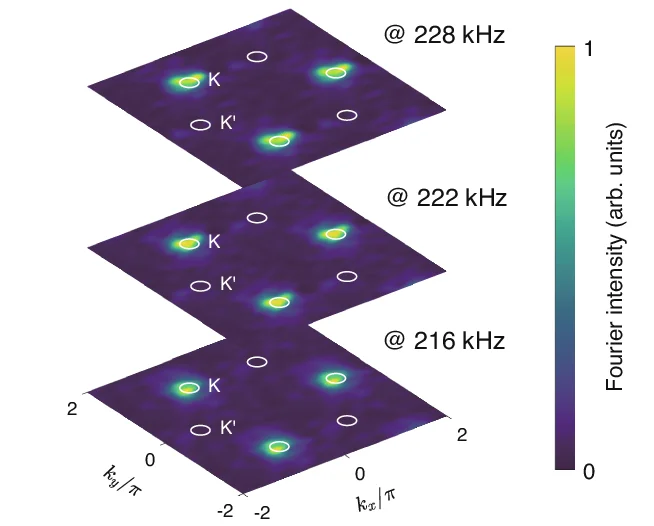

Experimentally measured dispersions of the circuit lattice along high-symmetry lines ( d ) and in the two-dimensional momentum space at different frequencies ( e ). The colors represent the normalized Fourier intensity. The dashed lines in ( d ) represent the theoretical results.
