Volcano Plot from Scientific Research

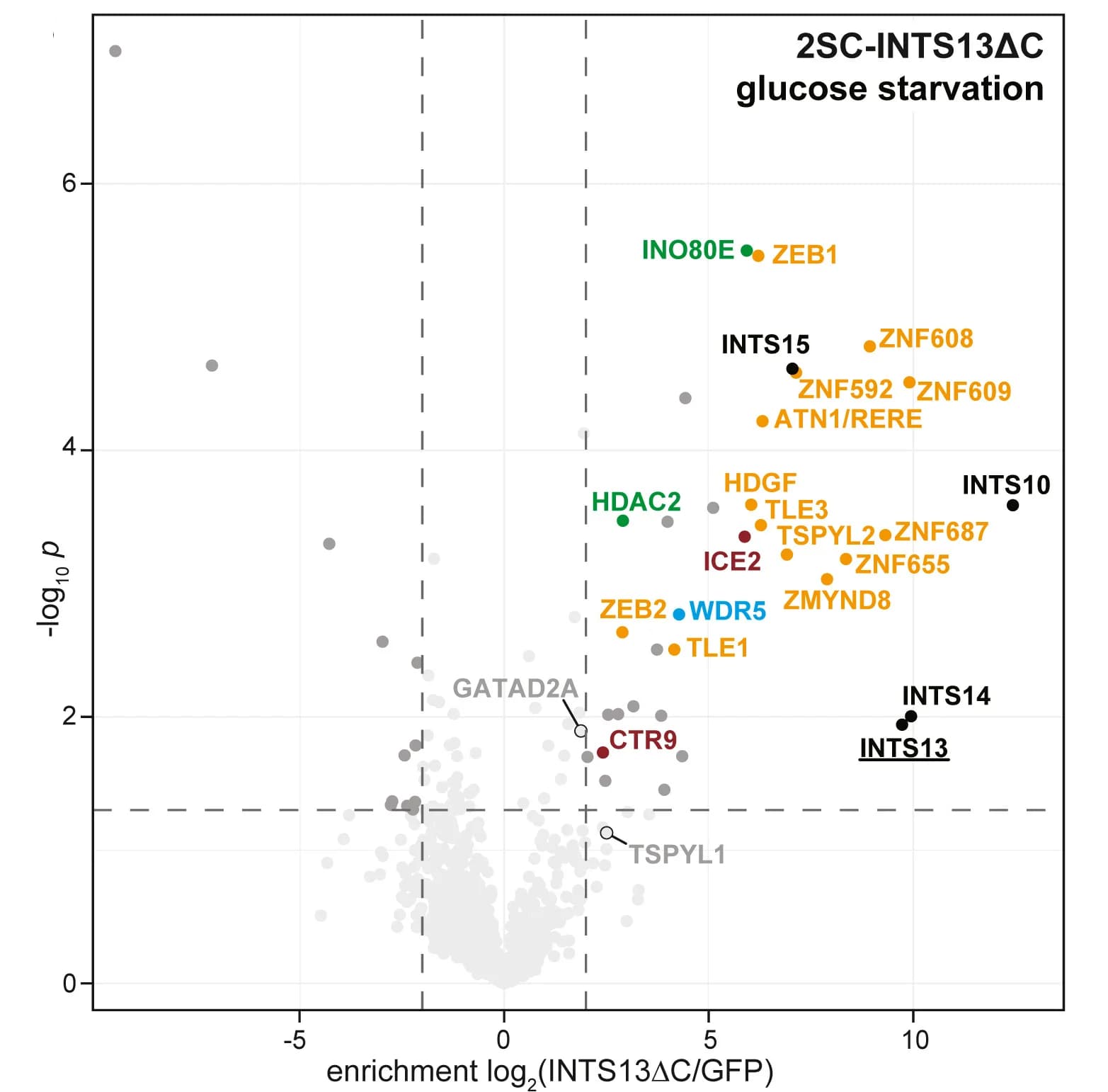

Volcano plots displaying proteins identified by TAP-MS of 2SC-INTS13ΔC over GFP control under normal growth conditions or glucose starvation. Significantly enriched proteins (log2[INTS13ΔC/GFP] > 2,p< 0.05) are colored (black: Integrator subunits, orange: TFs, green: chromatin remodelers, pink: RNAP2, red: elongation factors, blue: histone modifiers). TFs that are not significantly bound but significant in another condition are labeled in gray.
