Volcano Plot from Scientific Research

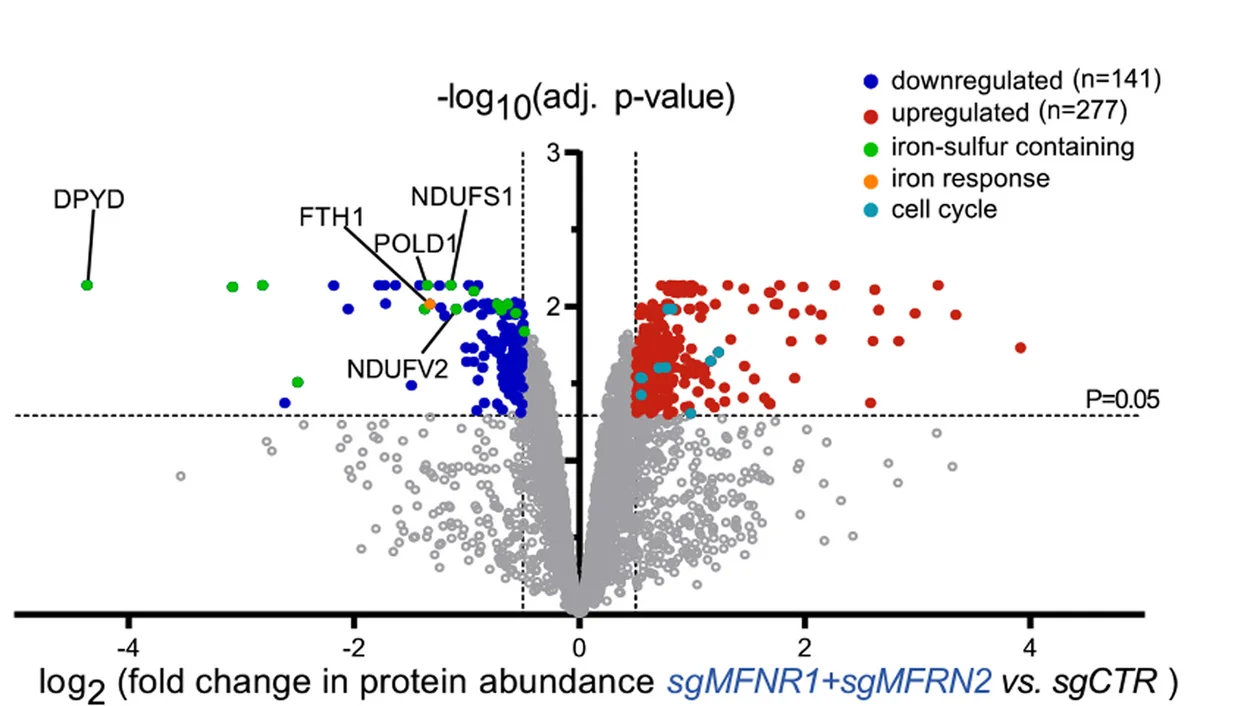

Volcano plot showing the relative fold change (log2) in protein abundance versus -log (adj. p -values) from SNU387 cultured for 6 days, harboring a simultaneous KO of MFRN1 and MFRN2 or no KO (CTR). Proteins were considered as differentially expressed with a log2FC >= 0.6 (upregulated; red data points) or <= - 0.6 (downregulated, blue data points) and an adjusted p -value < 0.05. The dotted line represents the adjusted P = 0.05. Colors denote indicated protein family or pathway affiliation. n = 3 biological replicates.
