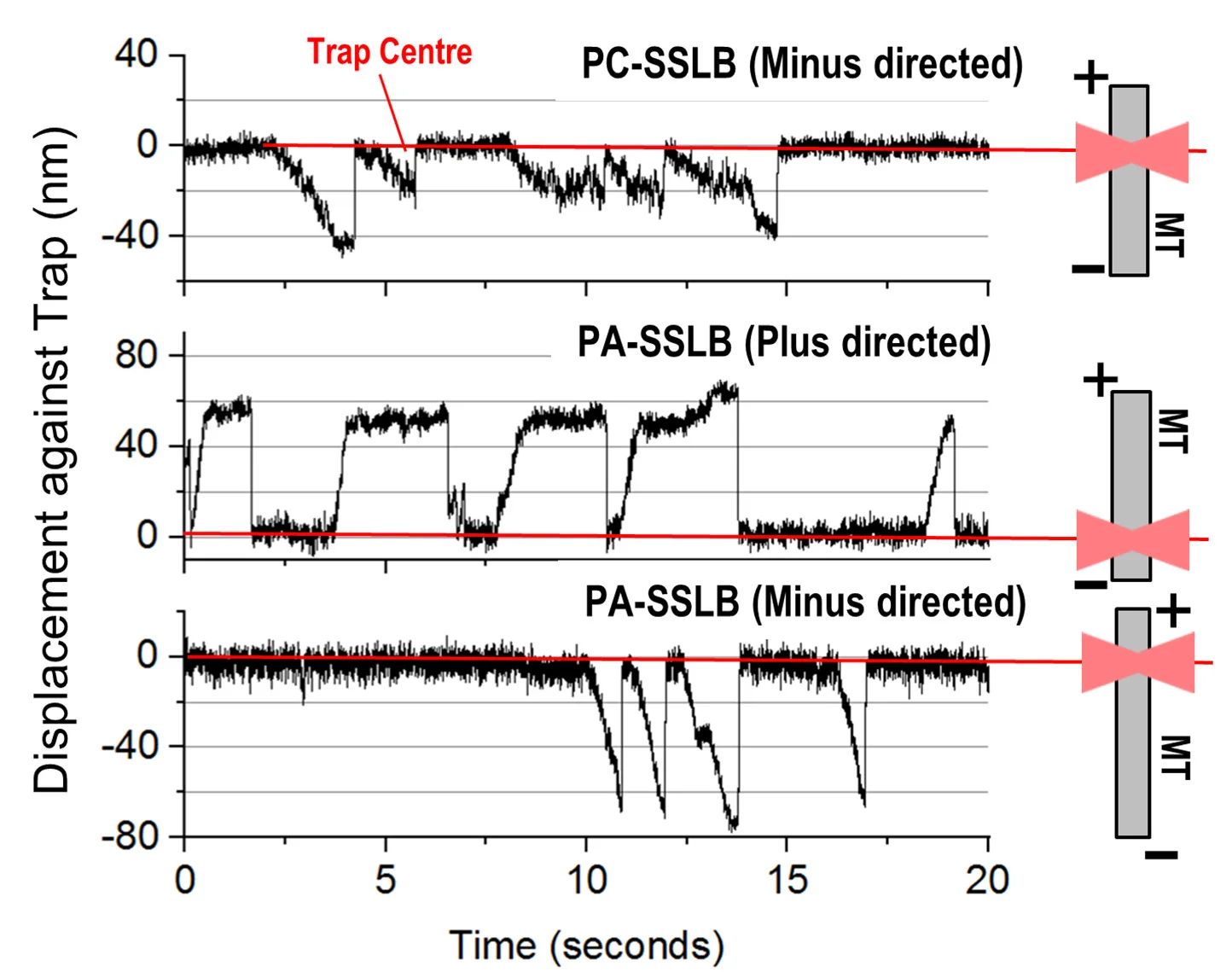

Displacement versus time curves for the motion of PC and PA-SSLBs against an optical trap. Examples of plus as well as minus-directed motion are shown for PA-SSLBs. Schematics on the right depict the experimental geometry and MT polarity. Red lines indicate the center of the trap (zero position). The trap stiffness is 0.07 ± 0.01 pN/nm.
