Line Plot from Scientific Research

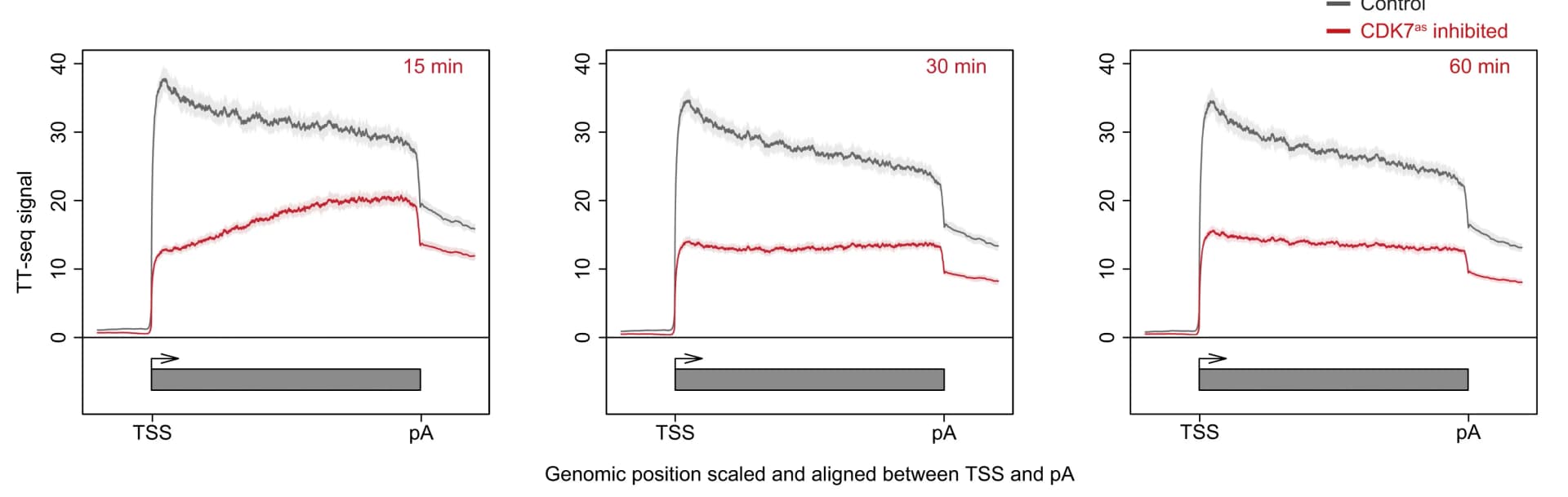

Metagene analysis of TT-seq signal of the expressed genes before (control, gray) and after (red) CDK7 inhibition for 15 (left), 30 (middle), and 60 (right) min. TT-seq signal from two biological replicates was merged and aligned at the TSS and polyadenylation sites. The shaded areas around the average signal (solid lines) indicate 95% confidence intervals of the mean.
