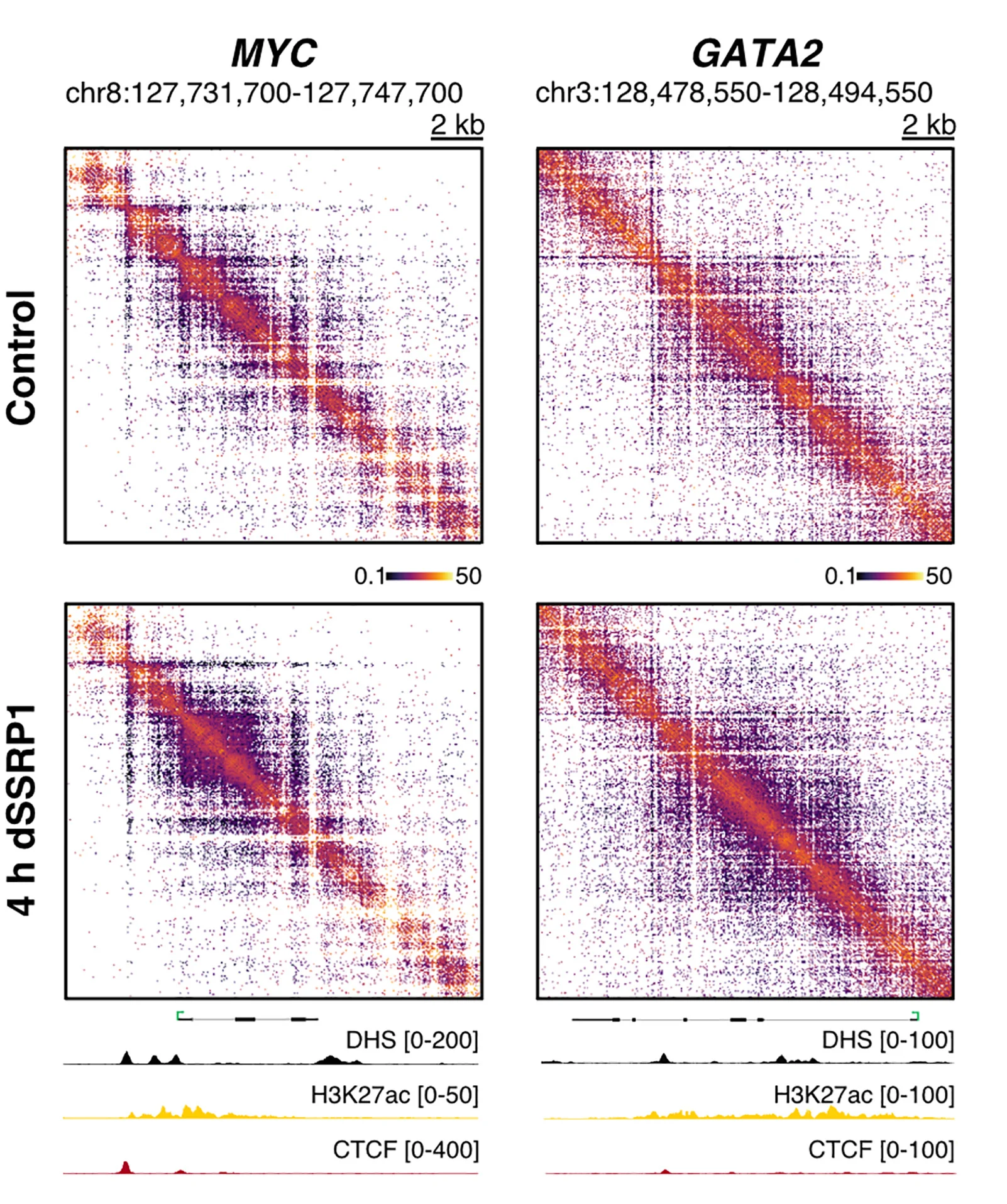

Localized contact matrices (50 bp resolution) derived from Tiled-MCC ligation junctions of the MYC and GATA2 loci in cells treated with solvent only (control, top) and dTAG7 ligand (dSSRP1, bottom). Gene annotation, DNase I hypersensitive sites (DHSs), and ChIP-seq tracks of H3K27ac and CTCF for wild-type K562 cells are shown at the bottom.
