Illustration from Scientific Research

Open access visualization of Illustration, GFP11 x7 Tag, GFP1-10 Tag, CPS-6, WAH-1
CC-BY
1
Views
0
Likes

Citation

DOI: 10.1038/s41421-024-00736-2

DOI

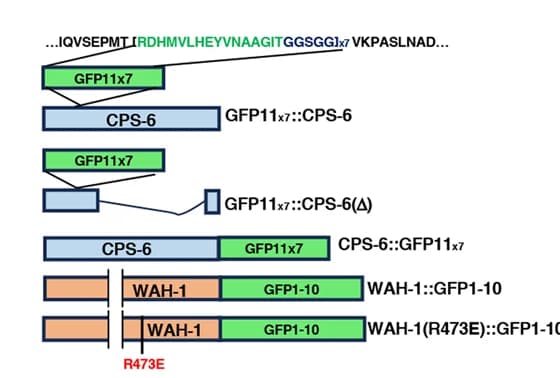

A schematic diagram of the GFP11 x7 tag and GFP1–10 tag inserted into the cps-6 and wah-1 loci, respectively, by genome editing. The sequence of GFP11 is shown. In the GFP11 x7 ::CPS-6(Δ) strain, CPS-6 residues 114–295 are deleted.
