Scatter Plot from Scientific Research

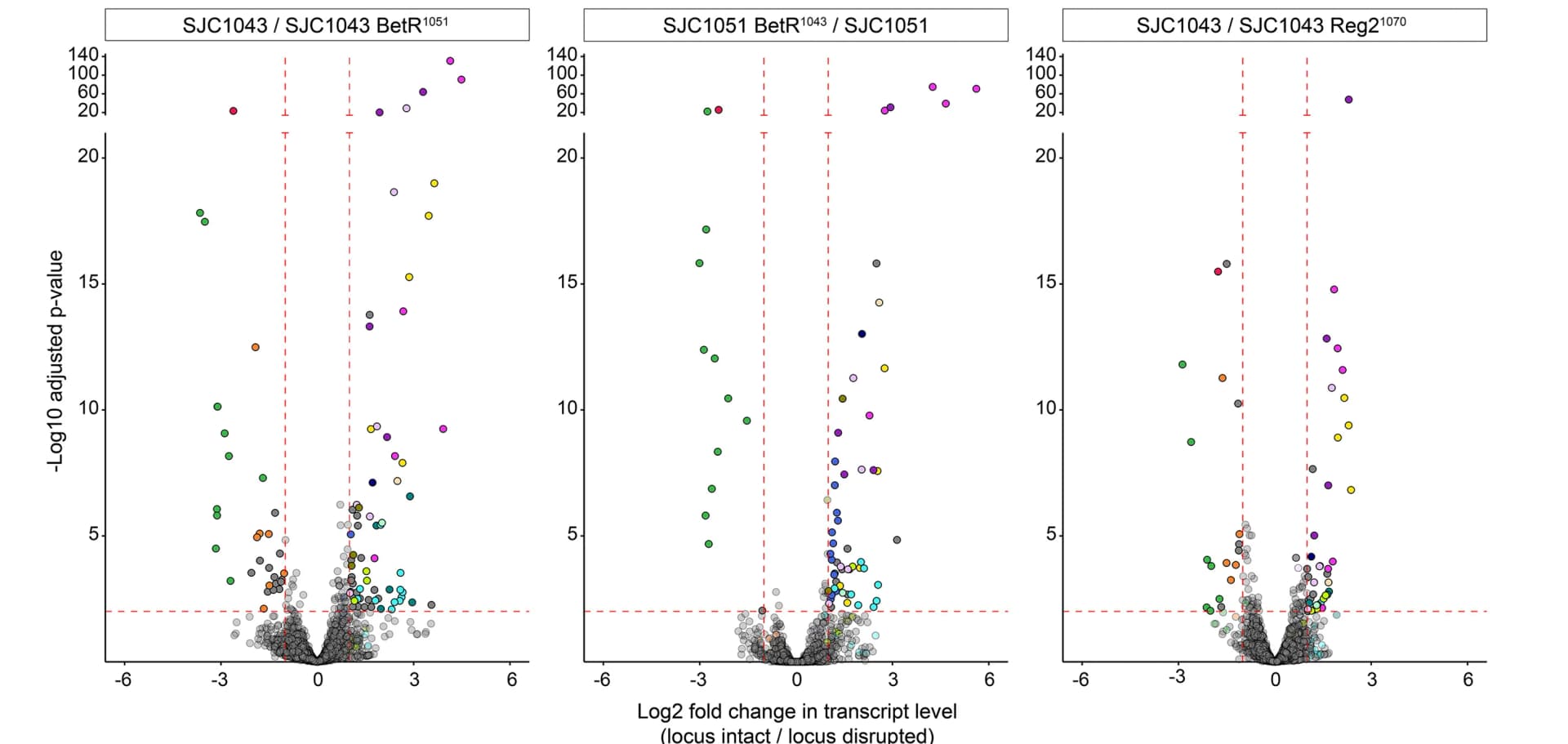

Volcano plots of RNA-seq-based comparisons between pairs of wild-type and otherwise-isogenicbetRorreg2exchanged strains. In each case, the log2fold change in transcript abundance was calculated as (betRlocus intact/betRlocus disrupted). Genes with significantly altered transcript levels in each comparison were defined as those with log2fold change >1 or <-1 and adjustedp< 0.01 (n =4 biological replicates), indicated by red dashed lines and solid color points. Genes within gene clusters of interest are colored according to the key, with other genes in dark gray.
