Scatter Plot from Scientific Research

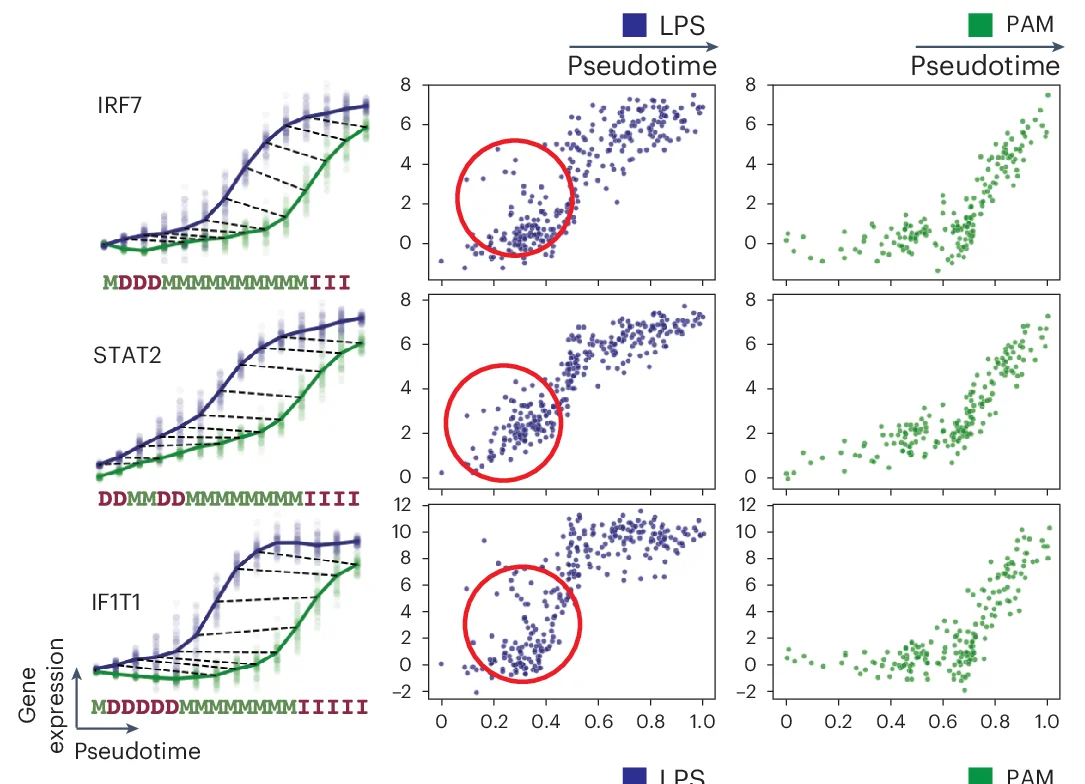

Gene expression of three representative core antiviral genes ( IRF7 , STAT2 and IFIT1 ) in query (blue) and reference (green). Interpolated log1p-normalized (per-cell total raw transcript counts normalized to 10,000 and log1p-transformed) expression ( y axis) against pseudotime ( x axis) (left). Bold lines represent mean expression trends and faded data points indicate 50 random samples from the estimated expression distribution at each time point. Black dashed lines represent time point matches (captured by the alignment string below). Actual log1p-normalized expression ( y axis) against pseudotime ( x axis) (right). Each point represents a cell. Red circles highlight early cells (‘precocious expressers’) with high expression.
