Bar Plot from Scientific Research

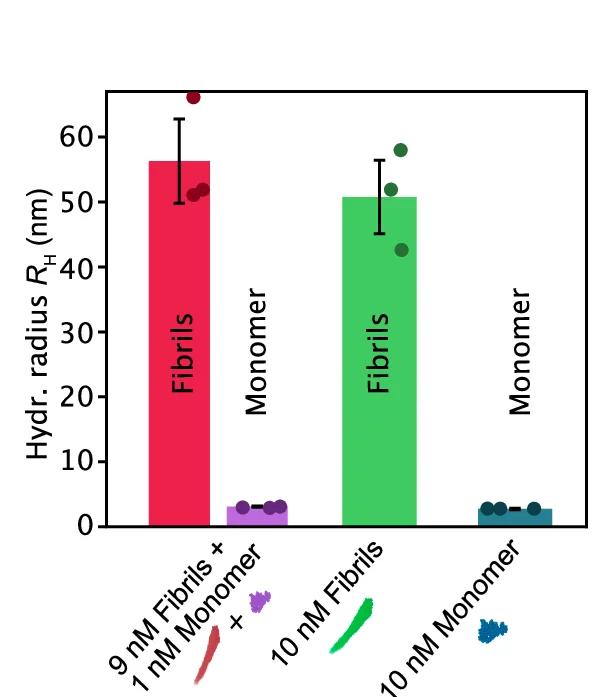

Comparison of extracted sizes from triplicate step scan measurements. Shown are R H of species extracted from a mixture of -synuclein fibrils (9 nM monomer equivalent) and 1 nM monomeric -synuclein (red and purple, respectively), pure monomeric -synuclein (blue), 10 nM monomer equivalent of -synuclein fibrils (green). Data points (mean) were obtained from triplicate measurements. Error bars denote standard deviations.
