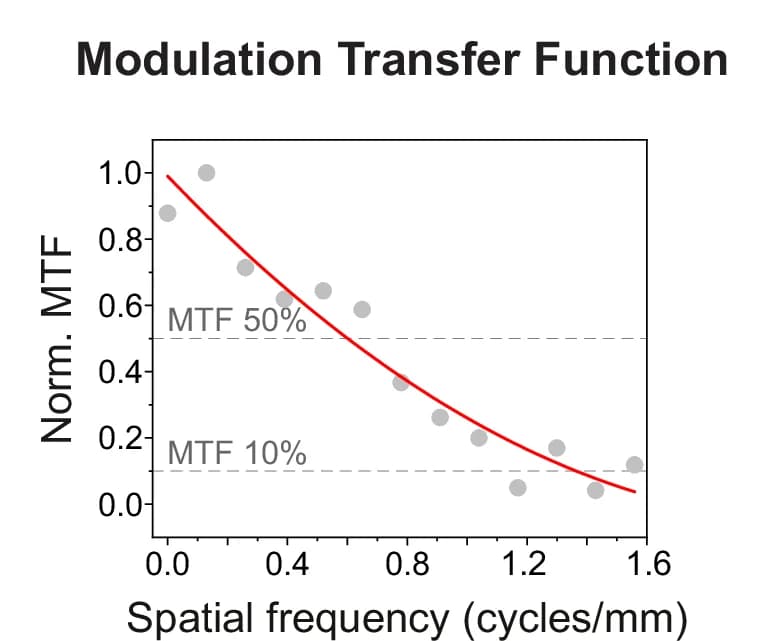

The calculated MTF for the RSPT system was based on the edge spread function from a projection of a cylindrical resin sample. From this, the line spread function (LSF) was derived and the MTF was computed by determining the magnitude of the Fourier Transform of the LSF. A demarcated cut-off at the 10% MTF threshold (1.35 cycles per mm) reveals the system’s estimated resolution capability of 740 µm with its current magnification.
