Illustration from Scientific Research

Open access visualization of Illustration, Workflow, Quantum Well Catalytic Structure, Ni@C-MoO x, Catalytic Center
CC-BY
2
Views
0
Likes

Citation

DOI: 10.1038/s41560-024-01604-9

DOI

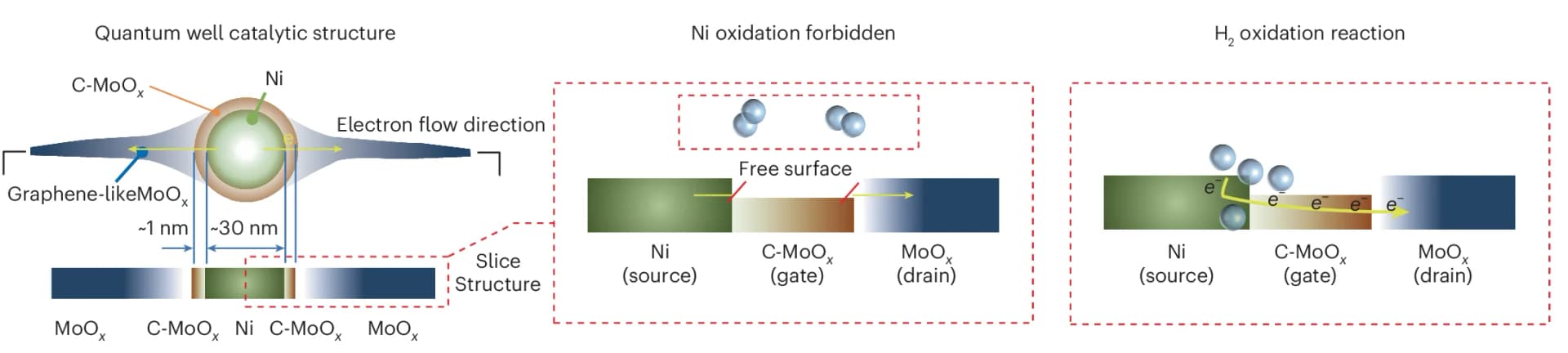

Diagram of the quantum well catalytic structure for Ni@C-MoO x in the QWCS. The on/off state between the catalytic centre (Ni or Ni-C-MoO x ) and current collector (MoO x or carbon) depends on the adsorption of reactants, which changes the electron conductivity of C-MoO x (acting as an electron channel).

#Illustration#Workflow#Quantum Well Catalytic Structure#Ni@C-MoO x#Catalytic Center#Current Collector#Electron Conductivity#Reactants
