Line Plot from Scientific Research
CC-BY
2
Views
0
Likes
Citation

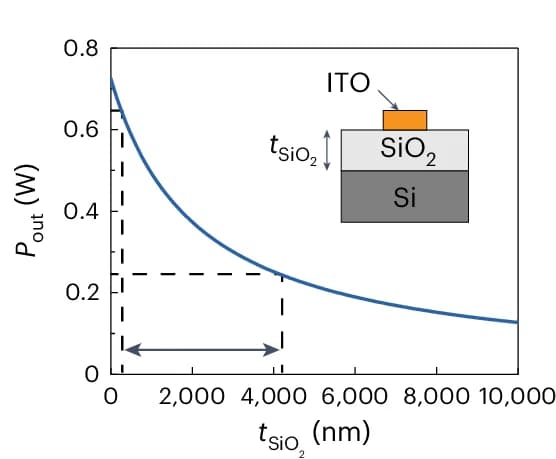

The effective output power estimated from the effective thermal conductivity. The arrow indicates the SiO 2 thickness region required to obtain a thermal dissipation power P out within the shaded region in b . The inset shows the cross section of an ITO heater on a SiO 2 /Si substrate.
#Line Plot#Illustration#Output Power#Thermal Conductivity#SiO2 Thickness#ITO Heater#SiO2/Si Substrate
