Line Plot from Scientific Research
CC-BY
1
Views
0
Likes
Citation

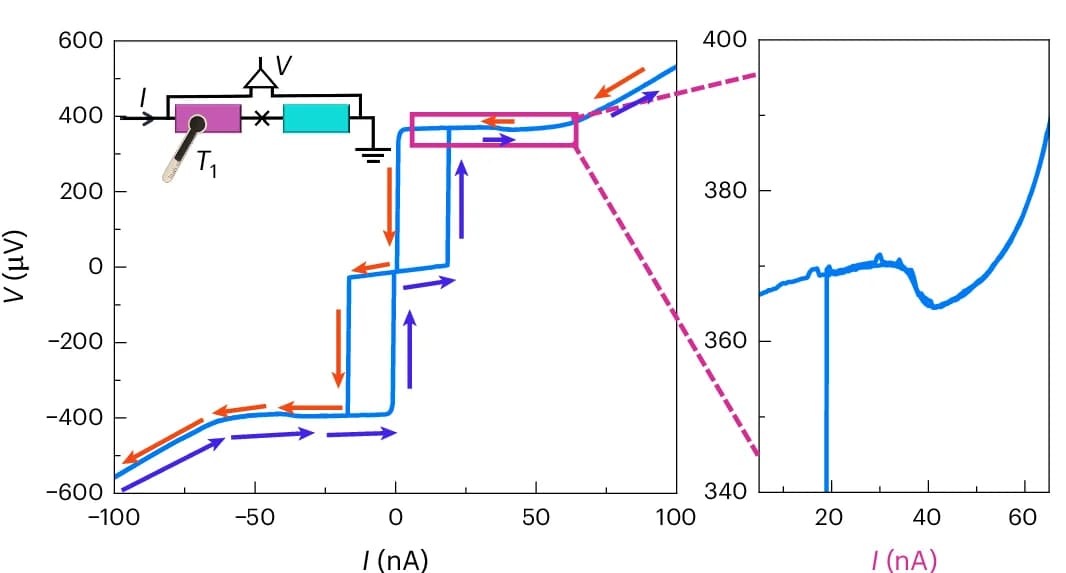

Hysteretic V I characteristics of the junction together with a zoom in the quasiparticle branch. The blue arrows show the signal in the forward current sweep, while the red ones present the reverse sweep. The set-up for voltage and temperature measurement is shown in the inset.
#Line Plot#Line Step#V-I Characteristics#Junction#Quasiparticle Branch#Voltage Measurement#Temperature Measurement
