Heatmap from Scientific Research

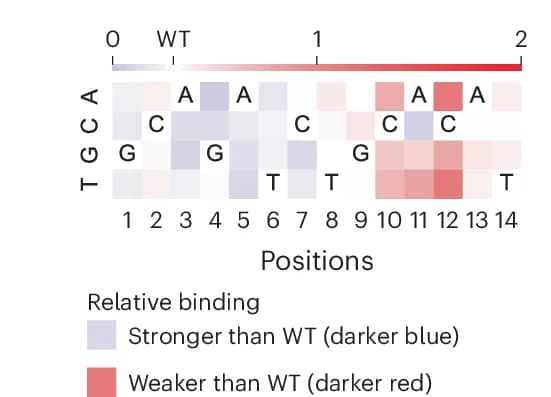

Relative binding activity (phycoerythrin/fluorescein isothiocyanate normalized to the no-competitor condition) of all possible single base-pair mutations obtained via flow cytometry analysis 34 in yeast display competition assays for each of the four HTH proteins shown in m, respectively. Blue indicates competitor mutations where competition was stronger than with the WT competitor, while red indicates competitor mutations where competition was weaker.
