Illustration from Scientific Research

Open access visualization of Illustration, Workflow, N-ADAR Editing System, Guide RNA, mRNA
CC-BY
3
Views
0
Likes

Citation

DOI: 10.1038/s41587-024-02313-0

DOI

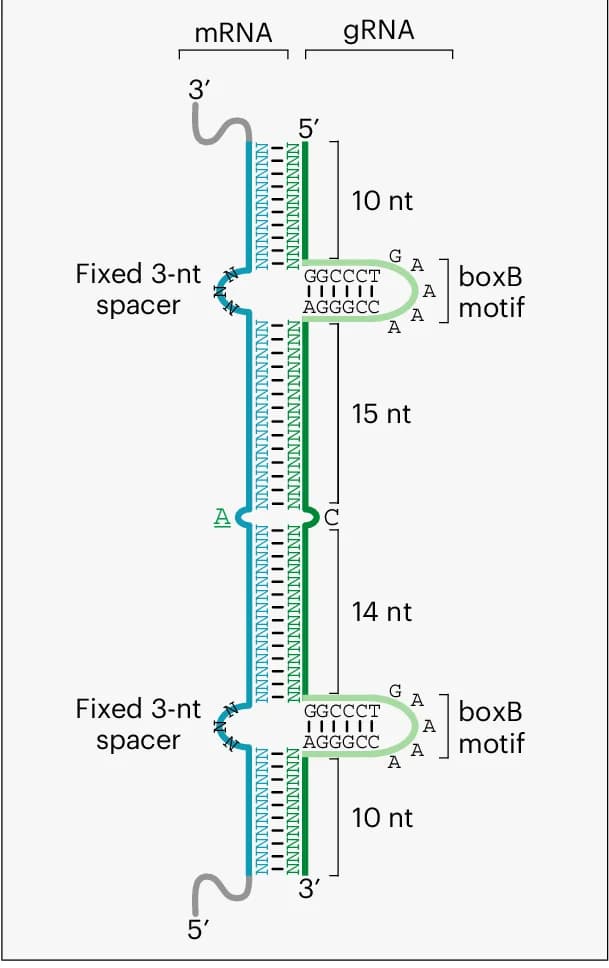

Schematic of the N-ADAR editing system. The 2 boxB motif-containing guide RNA (84 nt) binds its target mRNA (through 49 bp) to recruit the engineered hyperactive N-ADAR2Q editase.

#Illustration#Workflow#N-ADAR Editing System#Guide RNA#mRNA#N-ADAR2Q Editase
