Line Plot from Scientific Research

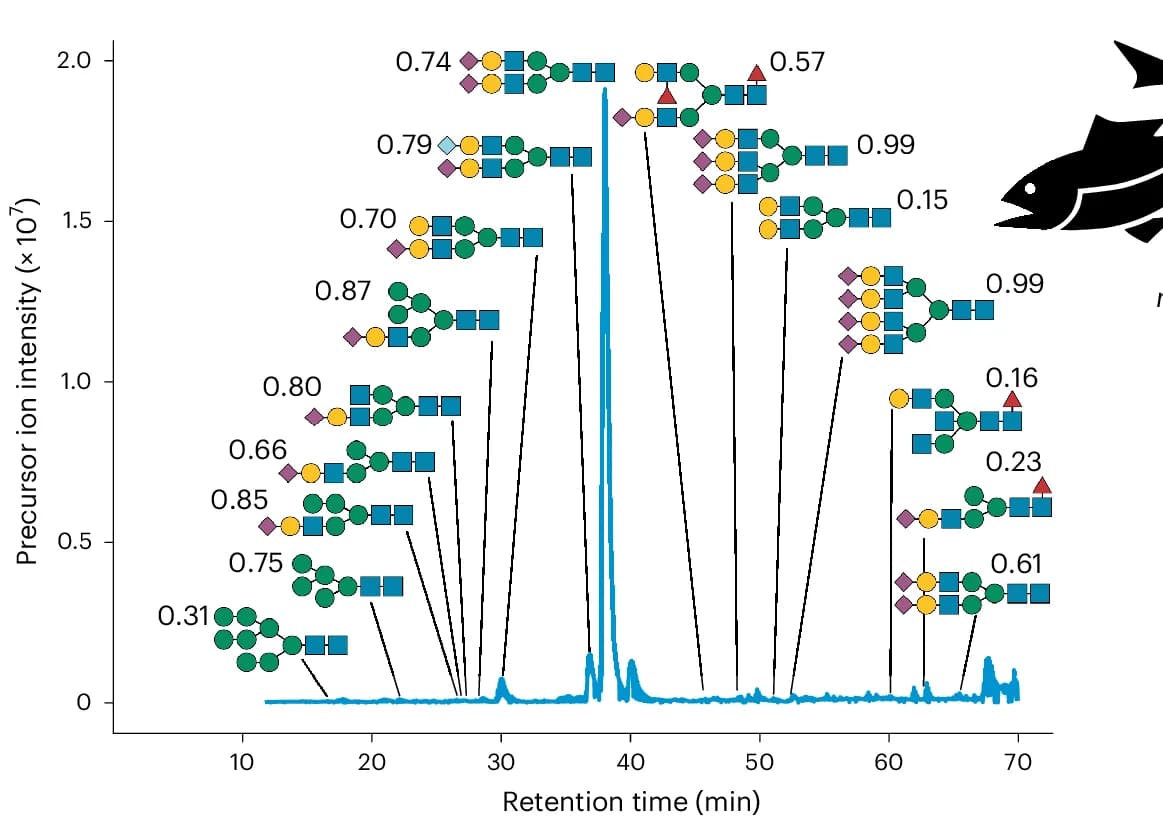

Serum N -glycome of the southern bluefin tuna ( T. maccoyii ). Shown are the precursor ion intensities, arrayed by LC retention time. Representative structures that are meant to illustrate the identified sequence diversity are shown via the SNFG. Next to each structure, we show the cosine similarity of the shown spectrum and the averaged spectrum of all negative ion mode spectra of reduced glycans of the predicted structure with a confidence above 0.5 (see Fig. 2 for background).

DOI
