Heatmap from Scientific Research

Open access visualization of Heatmap, CS +, CS −, MBON Spiking, Training Bouts
CC-BY
3
Views
0
Likes

Citation

DOI: 10.1038/s41586-024-07819-w

DOI

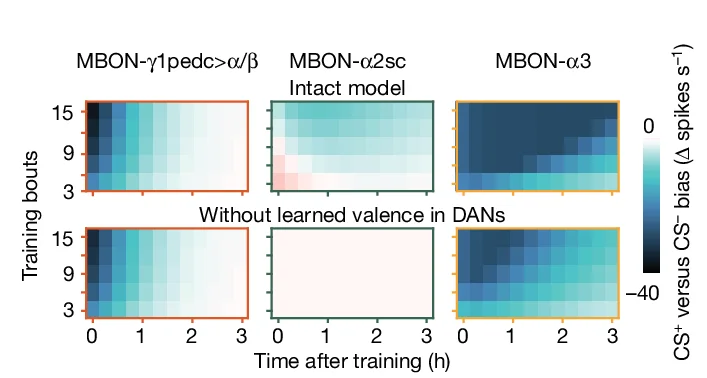

Simulated biases between CS + - and CS − -evoked MBON spiking as a function of time after training ( x axis), given different numbers of training bouts ( y axis) and with feedback from MBON-γ1pedc>α/β either active (top) or inactivated (bottom).

#Heatmap#CS +#CS −#MBON Spiking#Training Bouts#Feedback
