Bar Plot from Scientific Research

Open access visualization of Bar Plot, Error Bars, Line Plot, PPL1-α3, Spike Rates
CC-BY
1
Views
0
Likes

Citation

DOI: 10.1038/s41586-024-07819-w

DOI

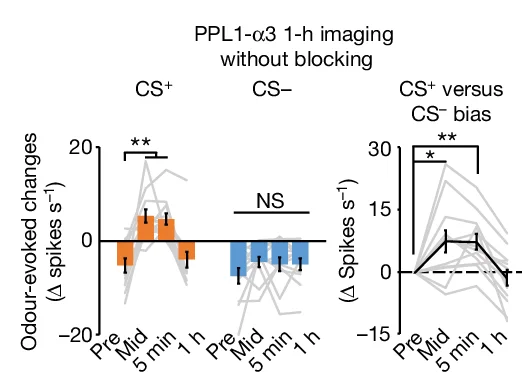

Left, changes in PPL1-α3 spike rates in the blocking (i; TH-LexA/13×LexAop-pAce;MB085C/UAS-TnT) or control (j; TH-LexA/13×LexAop-pAce) groups, evoked by attractive CS + and CS − odours in four different imaging sessions. Right, CS + versus CS − bias of evoked spiking relative to pre-training responses (Methods; 12 flies per group).
