Workflow from Scientific Research

Open access visualization of Workflow, Flowchart, PPL1-DAN, MBON, Mushroom Body
CC-BY
2
Views
0
Likes

Citation

DOI: 10.1038/s41586-024-07819-w

DOI

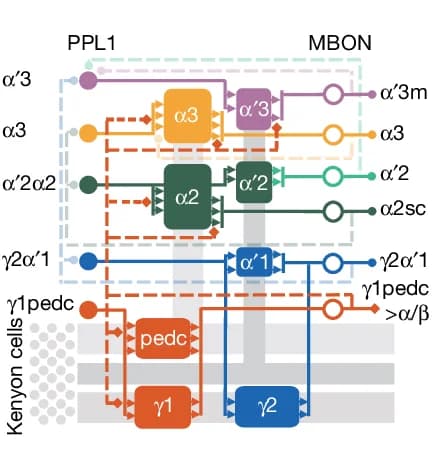

PPL1-DAN and MBON connectivity. Five PPL1-DANs innervate eight compartments of the mushroom body and modulate six downstream MBONs. Kenyon cells and their axons are shown in grey. Solid and dashed lines indicate feedforward and feedback connections, respectively.

#Workflow#Flowchart#PPL1-DAN#MBON#Mushroom Body#Kenyon Cells#Connectivity
