Scatter Plot from Scientific Research

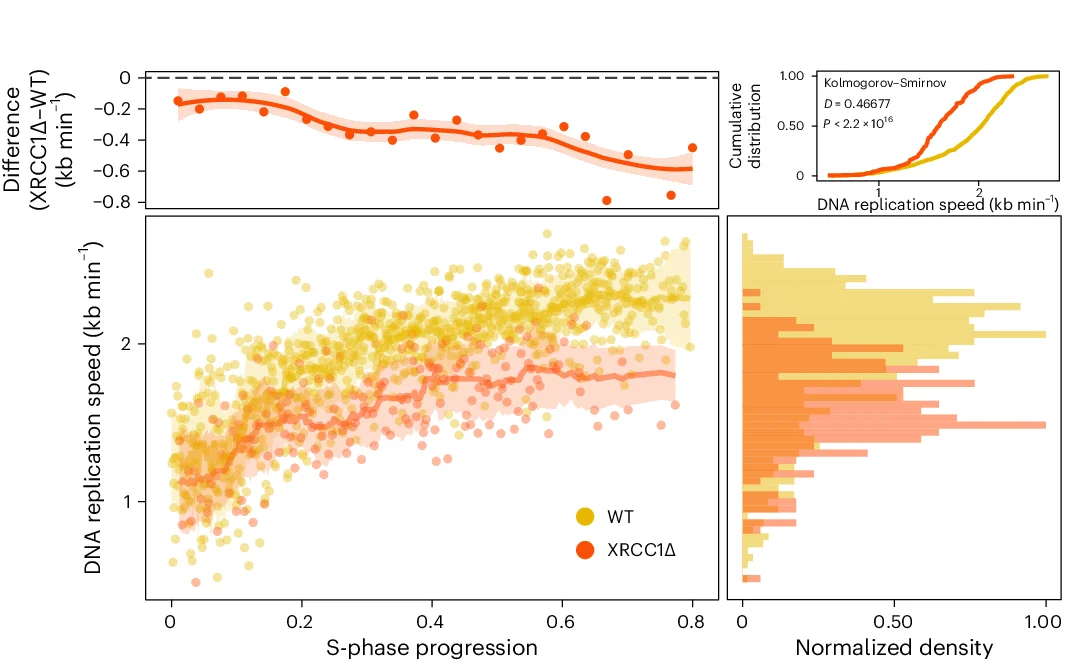

DNA replication speed over S phase in WT (yellow, n = 326) or XRCC1 (red, n = 187) (lower left). Each dot is a cell, the line indicates a rolling-window median smooth and the ribbon the standard deviation. Difference in DNA replication speeds between WT and XRCC1 in kb min -1 ( y axis) over S phase ( x axis, upper left). The histogram shows DNA replication speeds in kb min -1 ( y axis) colored for WT (yellow) or XRCC1 (red, lower right) and cumulative frequency distribution (upper right).
