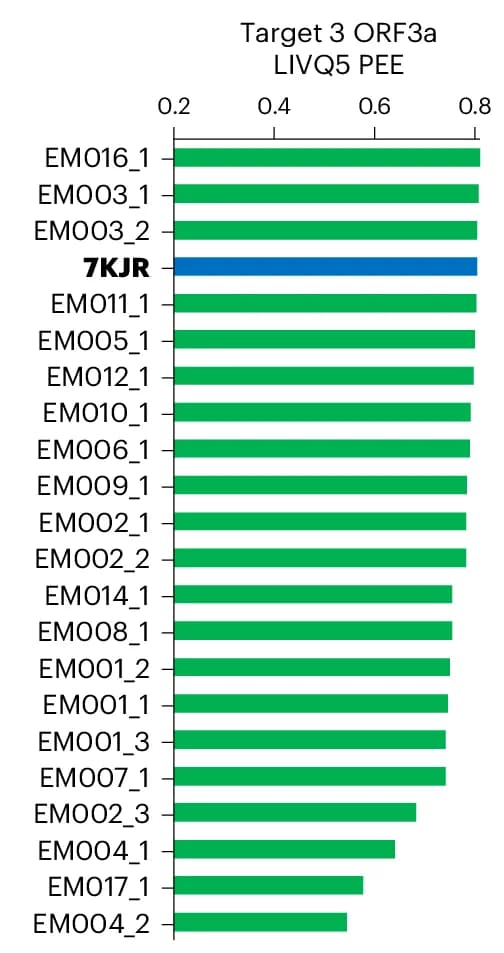

LIVQ5 is plotted according to rank for each submitted model (labeled as participant group ID, Table 1, followed by model number) and for each reference model (labeled as PDB ID): target 3. Models with good overall MolProbity scores (<3.0) are shaded green; those with poor MP scores (>3.0) are shaded red and starred; reference models are shaded blue and labeled in bold. Immediate vicinity includes all nonhydrogen model atoms 5 from any ligand nonhydrogen atom. Model rankings with extended vicinity (LIVQ10) are provided in Extended Data Fig. 4.
