Scatter Plot from Scientific Research

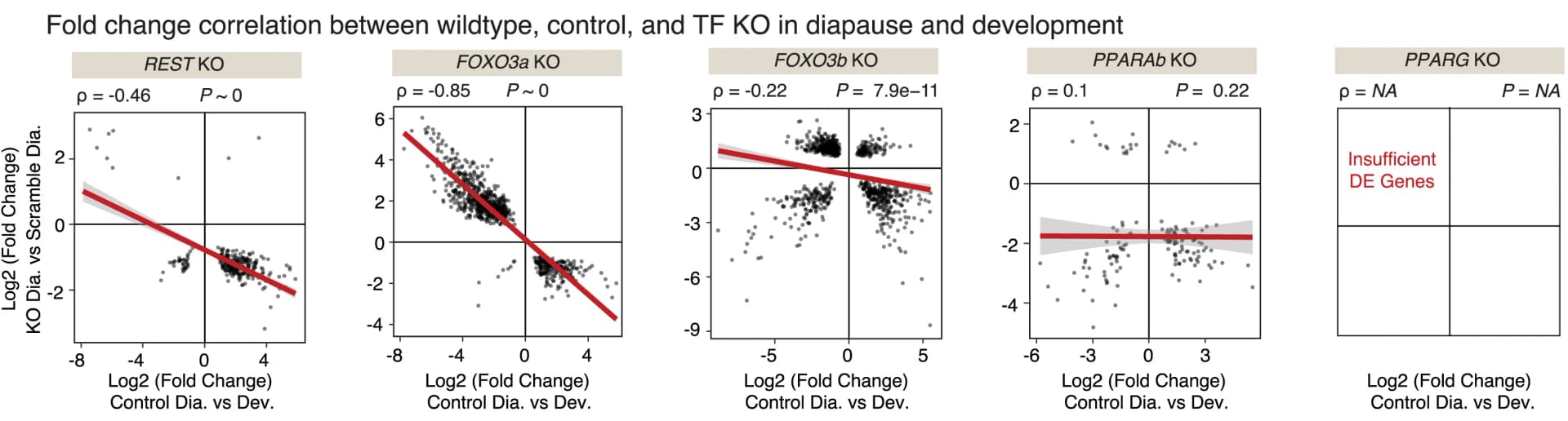

Correlation plot between the fold change of DEGs in diapause vs. development control (wild type and scramble) (x axis) and the fold change of DEGs in TF knockout (KO) vs. scramble (in diapause) (y axis). Similar results were observed with either type of control (wild type or scramble). Dots represent individual DEGs with FDR < 0.1. Spearman’s correlation ρ and pvalues are displayed for each transcription factor knockout plot.

DOI
