Box Plot from Scientific Research

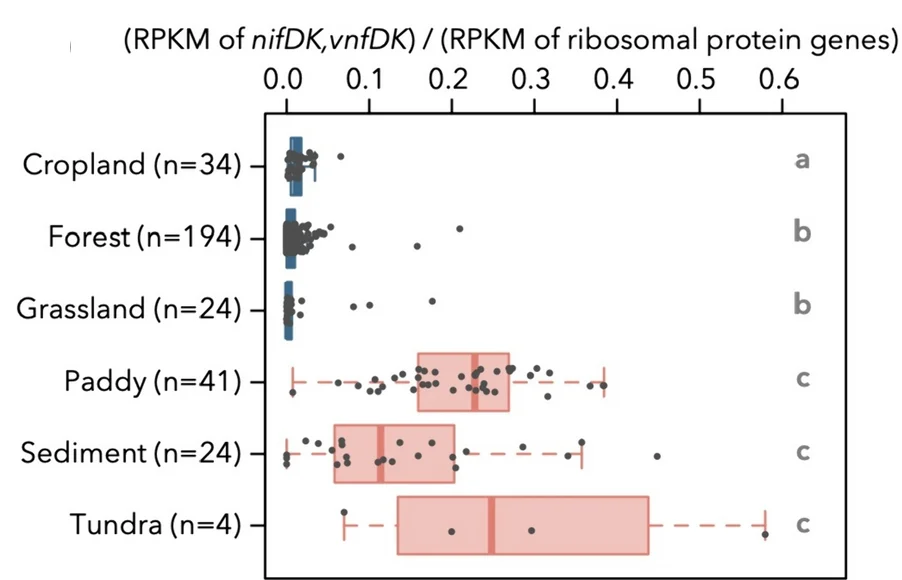

The dominance of nitrogen-fixing population in each environment. For each of the 321 metagenomic datasets, the ratio of reads per kilobase of reference sequence per million sample reads (RPKM) of nitrogenase genes to the RPKM of ribosomal protein genes is displayed. The letters on the right side of the box indicates the statistical significance in RPKM ratio between different environmental categories ( P < 0.05, BrunnerMunzel test with Bonferronis correction). First, second, and third quantiles are indicated by solid lines. The whiskers, if any, denote 1.5*[interquartile range] from first or third quartile
