Volcano Plot from Scientific Research

CC-BY
4
Views
0
Likes
Citation

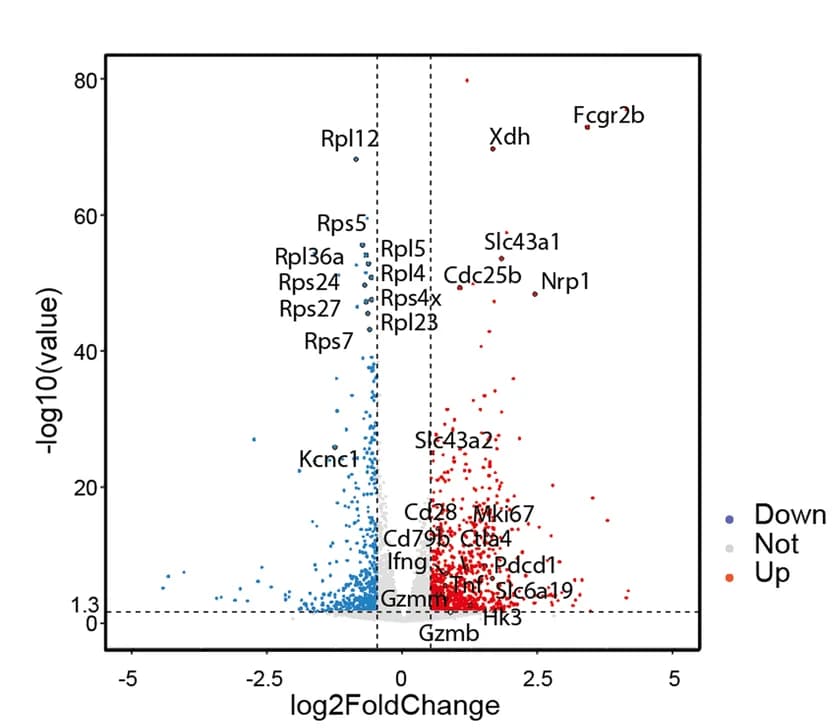

Volcano plot of differentially expressed genes (DEGs) generated by RNA-seq analysis of Depdc5 WT ( Depdc5 WT ) and Depdc5 knock-out ( Depdc5 KO ) CD8 + T cells. Red dots represent genes significantly upregulated in Depdc5 KO CD8 + T cells ( P < 0.05 and log 2 fold change (FC ) 0.5), while blue dots represent genes significantly downregulated ( P < 0.05 and log 2 FC 0.5), and grey dots indicate DEGs below the level of significance.
#Volcano Plot#Differentially Expressed Genes#RNA-seq#Depdc5 WT#Depdc5 KO#CD8+ T Cells#Upregulated Genes#Downregulated Genes
