Workflow from Scientific Research

Open access visualization of Workflow, Flowchart, Neurons, Gold Finder Grids, Cell Culture Dish

#Workflow #Flowchart #Neurons #Gold Finder Grids #Cell Culture Dish #Alexa Fluor 488 Labeled Ab42 Oligomers #LysoTracker Red #Lysosomes #Gold Fiducials #Tomogram Alignment #Cryogenic Widefield Microscopy #Cryo-SIM #Ab42 Oligomer Fluorescence #Lysosome Fluorescence #Cryo X-Ray Microscopy #Cellular Ultrastructure #Three Dimensional Cellular Maps #Lysosomal Changes

Related Plots

CC-BY 4.0

5

Views

0

Likes

Citation

DOI: 10.1016/j.str.2024.02.010

DOI

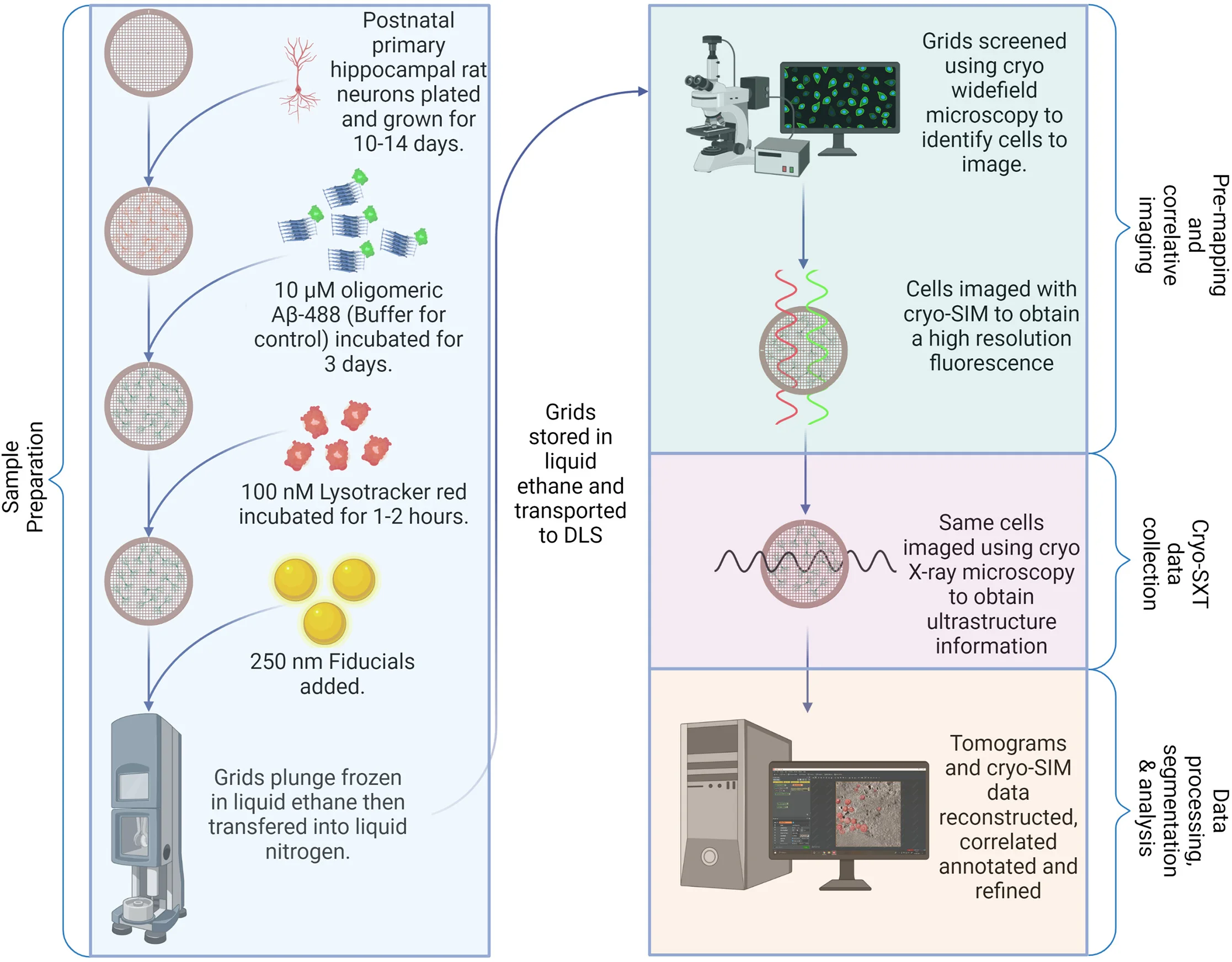

Neurons are plated on gold finder grids in a cell culture dish and treated with unlabeled or Alexa Fluor 488 labeled Ab42 oligomers for 3 days. LysoTracker Red is added to label lysosomes and gold fiducials added to aid tomogram alignment at later processing stages. The grids with neurons are then plunge frozen in liquid ethane and screened using cryogenic widefield microscopy to select areas to analyze further using cryo-SIM to image Ab42 oligomer and lysosome fluorescence followed by cryo X-ray microscopy to view the cellular ultrastructure. Finally, various data processing stages are carried out to generate three dimensional cellular maps and quantify the lysosomal changes. Created withBiorender.com.
