Scatter Plot from Scientific Research

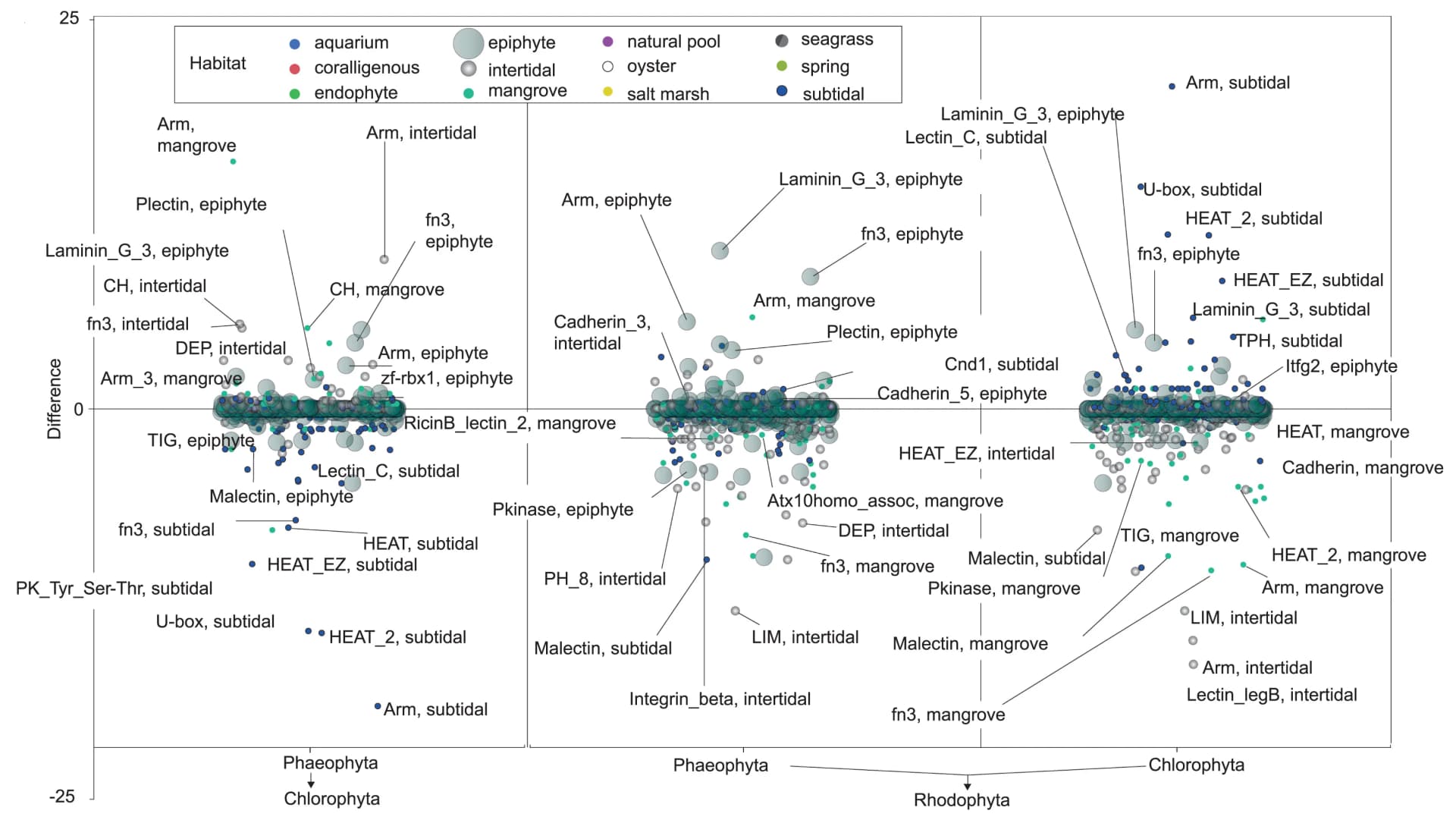

Macroalgal adhesome PFAMs were compared across phyla and habitats (n= 124 genomes) in FDR-corrected batcht-tests (Supplemental Table 4). The PFAMs selected fromSupplemental Table 1comprising the adhesome were cadherin, integrin, armadillo (ARM), lectin, F actin-binding CH, Kringle, PH, Src homology 2 (SH2), and LIM PFAM domains, altogether consisting of 110 distinct HMM-based PFAM domains. All data points shown are significantly different at adj. p <0.05. Groups of macroalgae listed in the top boxes were compared to those listed along the x axis, where a positive number signifies an increase in the top level.

DOI
