Bubble Plot from Scientific Research

CC-BY
3
Views
0
Likes
Citation

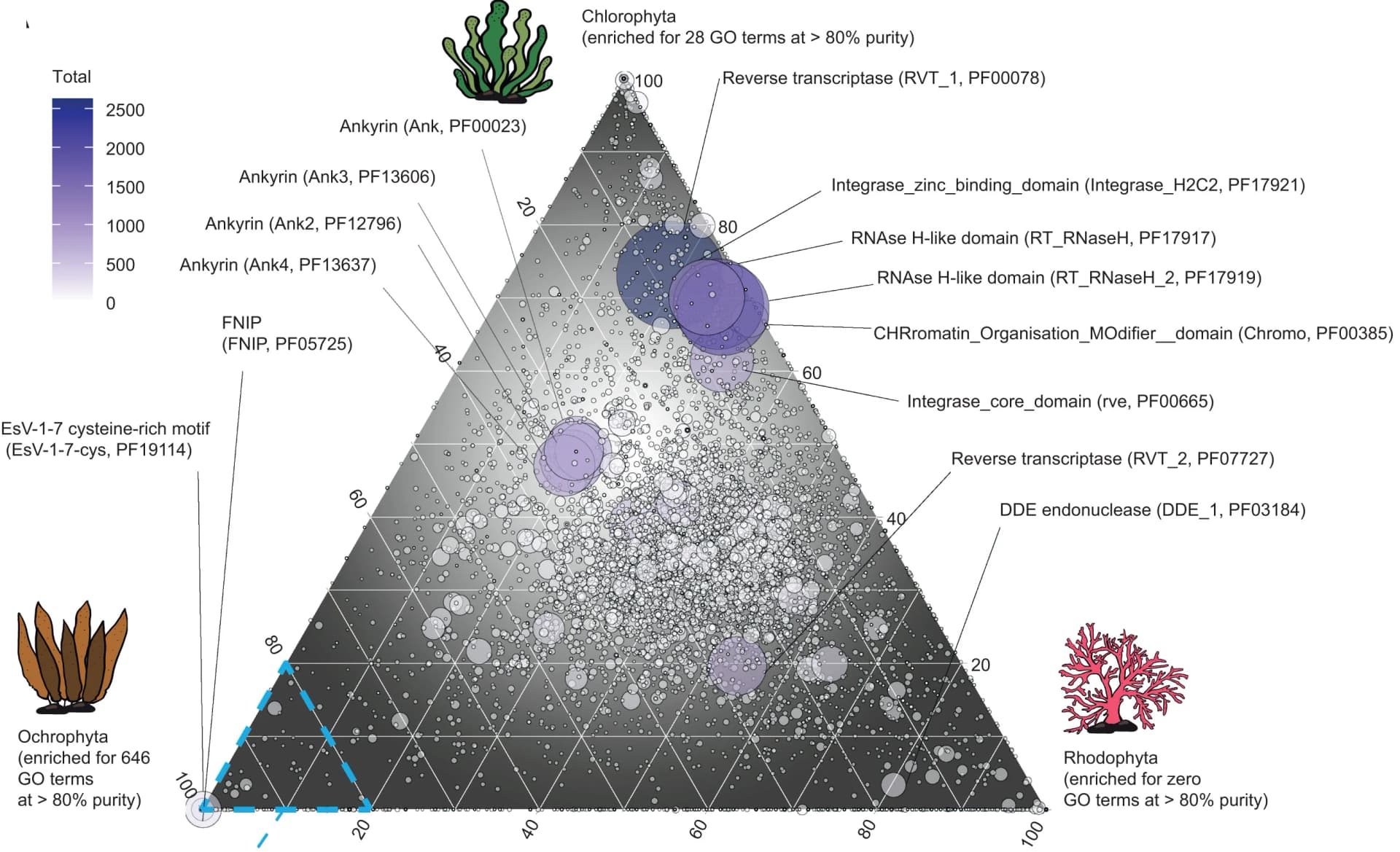

Ternary plot constructed from PFAM count averages for each of Chlorophyta (n =11), Rhodophyta (n =74), and Ochrophyta (n =45). Information about the degree of uniqueness of PFAMs (purity) is shown. Axes indicate the purity of the PFAM for the phyla shown on the triangle points. The plot is barycentric; three variables, represented by the average copy number of the PFAM, sum to a constant; bubble positions indicate copy number ratios (i.e., purity). Bubble size represents PFAM count totals for all phyla, where two is the smallest size, and 1000 is the largest.
