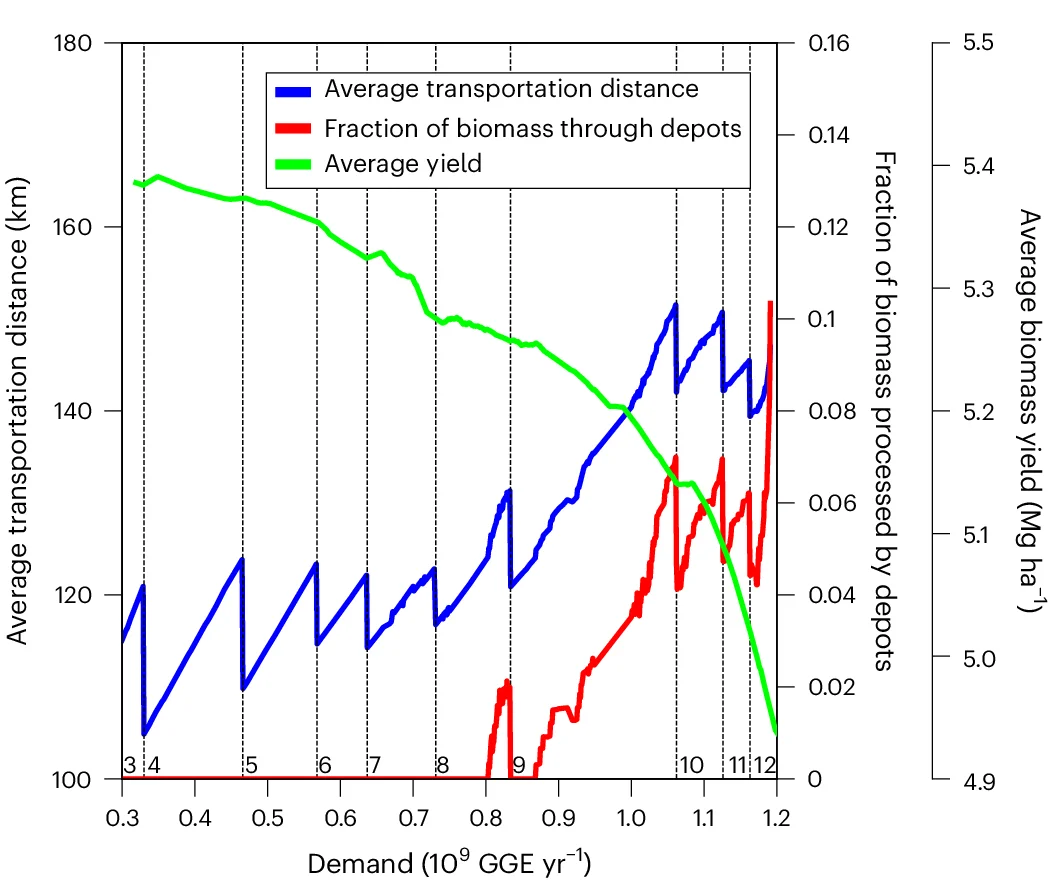

Representative spatial metrics as a function of liquid fuel demand. Average biomass transportation distance (blue), fraction of biomass processed by pre-processing depots (red) and average biomass yield for established fields (green). The vertical lines and corresponding numbers to the right of the line indicate the total number of biorefineries installed.
