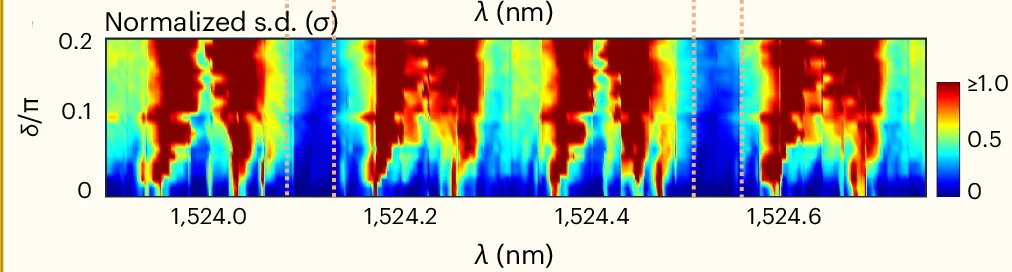

The measured s.d. (normalized) of transmission spectra under different strengths of disorder. Evident windows with low fluctuations correspond exactly to the regimes of topological edge modes. δ increases from 0 to 0.2π with an interval of 0.01π. S.d. is colour coded and the key is provided at the bottom right.
