Box Plot from Scientific Research

Open access visualization of Box Plot, Scatter Plot, log 2 FC z-score, E-E Pairs, E4
CC-BY
2
Views
0
Likes

Citation

DOI: 10.1038/s41587-024-02213-3

DOI

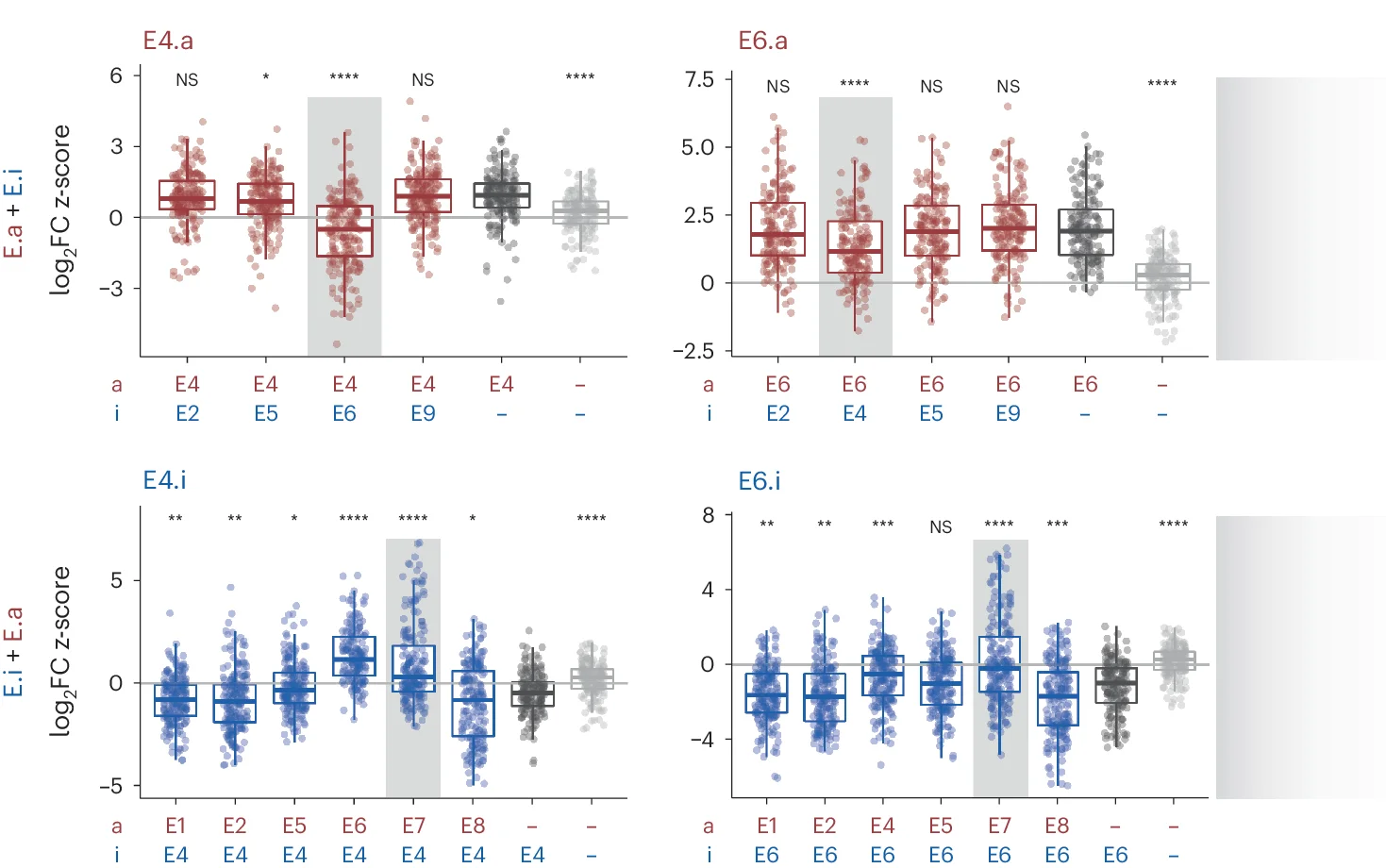

log 2 FC z-score (IL2 + /NEG) for all E-E pairs containing E4 (left) and E6 (right) for CRISPRa (top) or CRISPRi (bottom) of E4 and E6, respectively. Gray bars highlight gatekeeper enhancer perturbation pairs, which are shown further in e .

#Box Plot#Scatter Plot#log 2 FC z-score#E-E Pairs#E4#E6#CRISPRa#CRISPRi#Gatekeeper Enhancer#Perturbation Pairs
