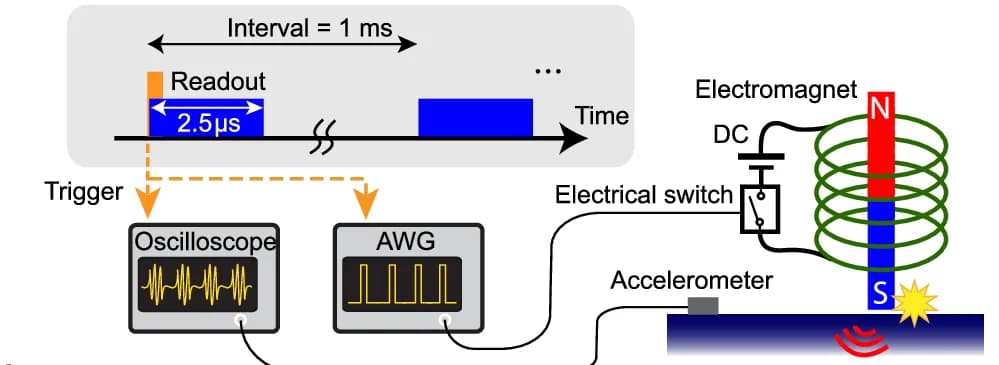

Pulse scheme and simplified experimental setup for simultaneously recording the qubit single-shot readout outcomes and a vibrational noise generated by a controlled mechanical shock. In addition to the oscilloscope setup for the vibration measurement, an AWG sends a synchronized switching signal to trigger a current in an electromagnet, leading to a mechanical shock.
