Line Plot from Scientific Research
CC-BY
0
Views
0
Likes
Citation

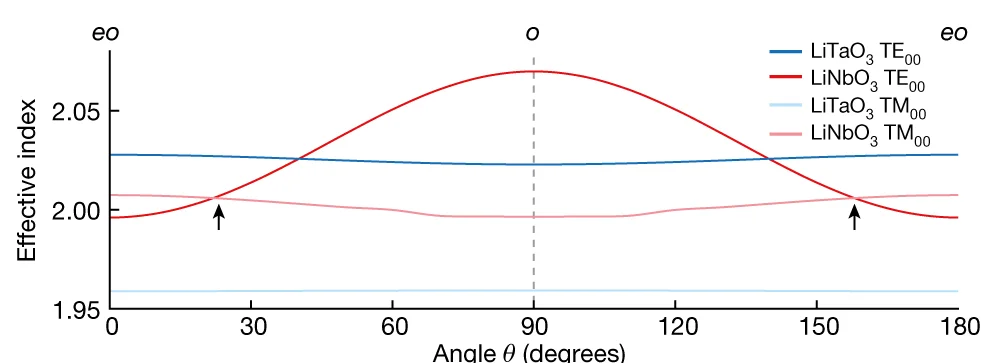

Numerical simulation of fundamental TE 00 and TM 00 optical-mode effective refractive indices of LNOI (red) and LTOI (blue) as a function of the angle between the waveguide and the y axis of the x-cut LNOI or LTOI film. The reduced birefringence of LTOI precludes unwanted birefringent mixing between fundamental TE 00 or TM 00 modes in thick waveguides. Arrows indicate birefringent mode mixing.
#Line Plot#Numerical Simulation#Transverse Electric Mode#Transverse Magnetic Mode#Effective Refractive Index#Lithium Niobate on Insulator#Lithium Tantalate on Insulator#Birefringent Mode Mixing
