Line Plot from Scientific Research

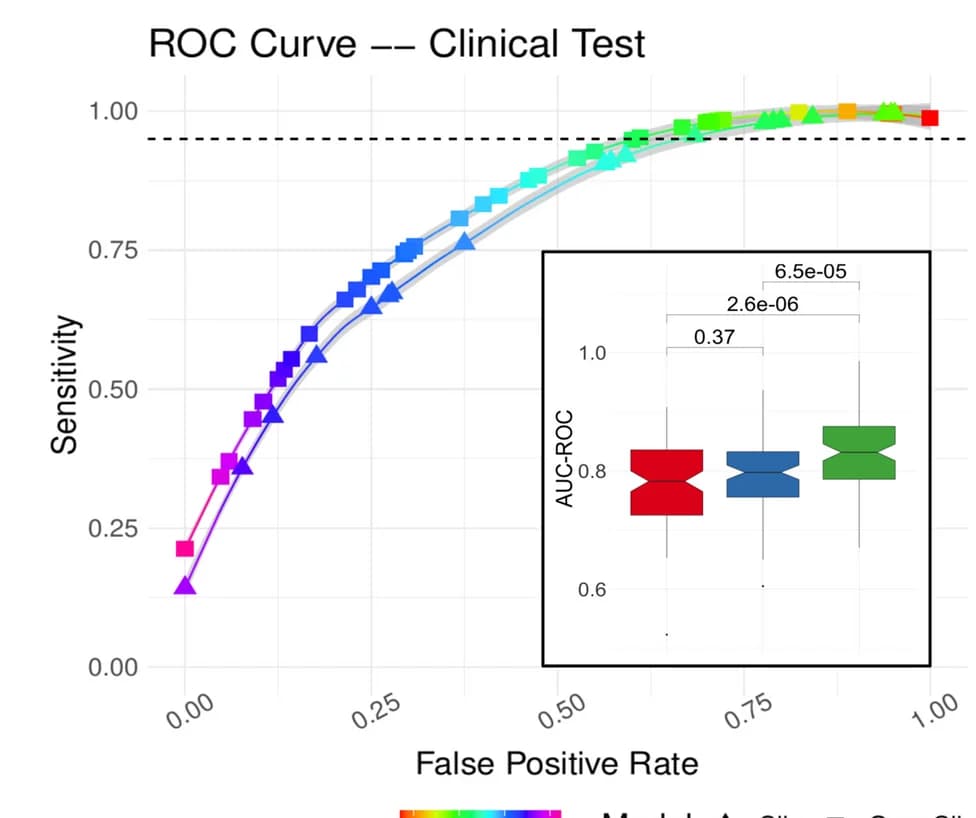

ROC curves for the clinic scores. For each case, we present the ROC curve for the model trained on clinical data (triangles) or on gene expression and clinical data (squares). Each curve is an average obtained across 100 cross-validation (CV) experiments and the grey area surrounding the curve gives the standard error. The color of the curve represents the test threshold corresponding to the represented sensitivity/false-positive rate compromise. (Inset) Area under the ROC curve, in 100 CV rounds, for a clinical-only model (red) the model constructed on the response genes (blue) and a model constructed on a combination of clinical information and response genes (green) for the clinic classifiers. P values given above each box are computed using a 2-sample t -test.
