Line Plot from Scientific Research

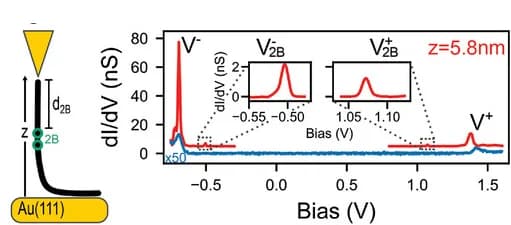

dI/dVspectra for a 2B-GNR (red,z= 5.8 nm) and a pristine 7AGNR (blue,z= 6 nm). The two dominant featuresV−andV+are present in both systems and attributed to resonant band transport, while the two peaksV2B−$V_{\text{2B}}^-$andV2B+$V_{\text{2B}}^+$appear between the band transport peaksV−andV+only in the doped system, as shown enlarged in the inset. The red curve is shifted vertically by 5 nS for easier comparison. Left: Sketch of the ribbon suspended between tip and substrate with the tip retractionzand the tip-2B-unit distanced2Bindicated.
