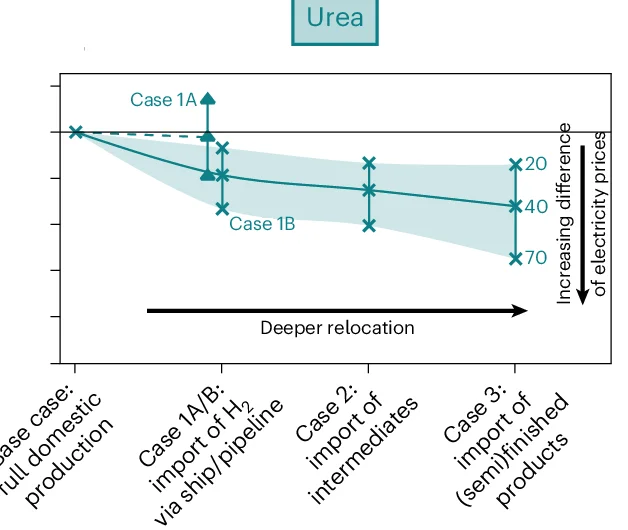

Low-carbon production of urea. Production cost relative to base case for the import cases from Fig. 3 (including subcases A/B for case 1). The top row shows the relocation savings expressed as total cost of production relative to the base case. Markers for the same case represent different electricity-price cases and the shaded band on the top row is a simple spline interpolation serving as visual support.
