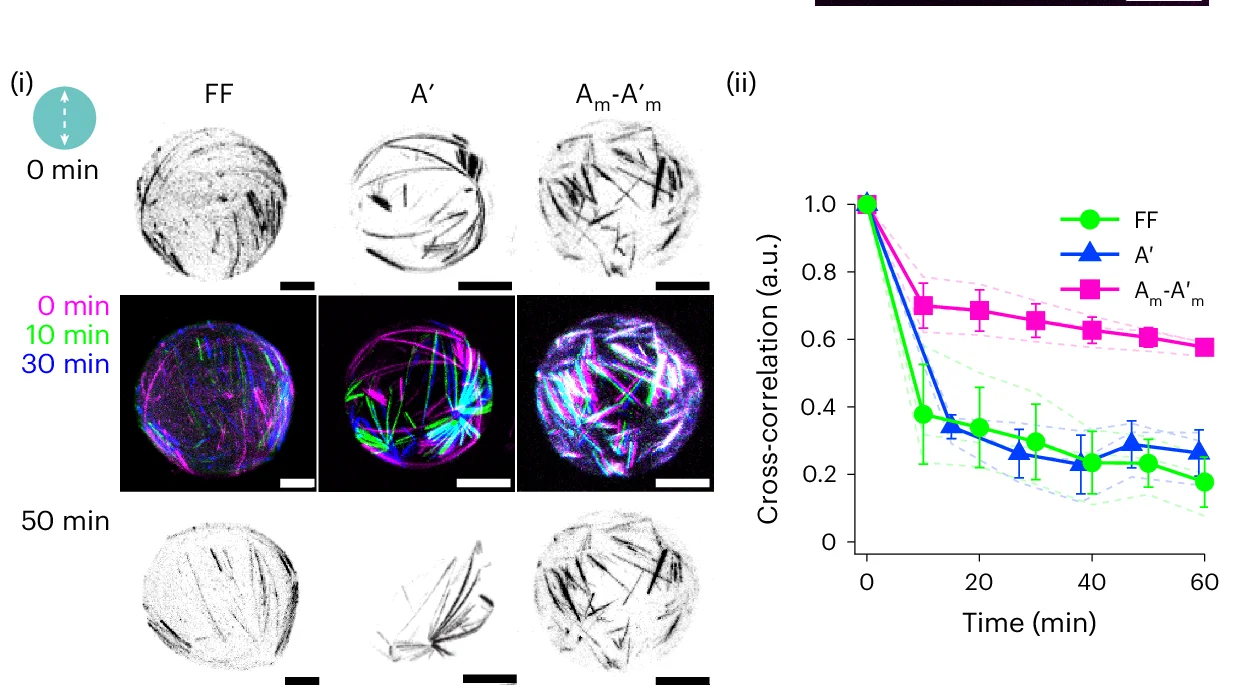

Cytoskeletal reorganization on the cortex upon heating. (i) Filament organization at 0 min (top) and after 50 min (bottom) of heating and overlaid maximum intensity projections (middle) of the red channel (Nile red, peptide and peptideDNA structures) from time lapses of lipid droplets containing FF (left), A′ (middle) and AA′ (right) heated at 50 °C (red, image at 0 min; green, image at 10 min; blue, image at 30 min). Scale bars, 10 m. (ii) Cross-correlations of binarized maximum z projections (red channel) versus time during heating. Data for individual droplets and their averages are depicted as dashed lines and markers, respectively. Data are presented as the mean ± s.d. for n = 3 droplets for FF, A′ and A m-A′ m.
