Line Plot from Scientific Research

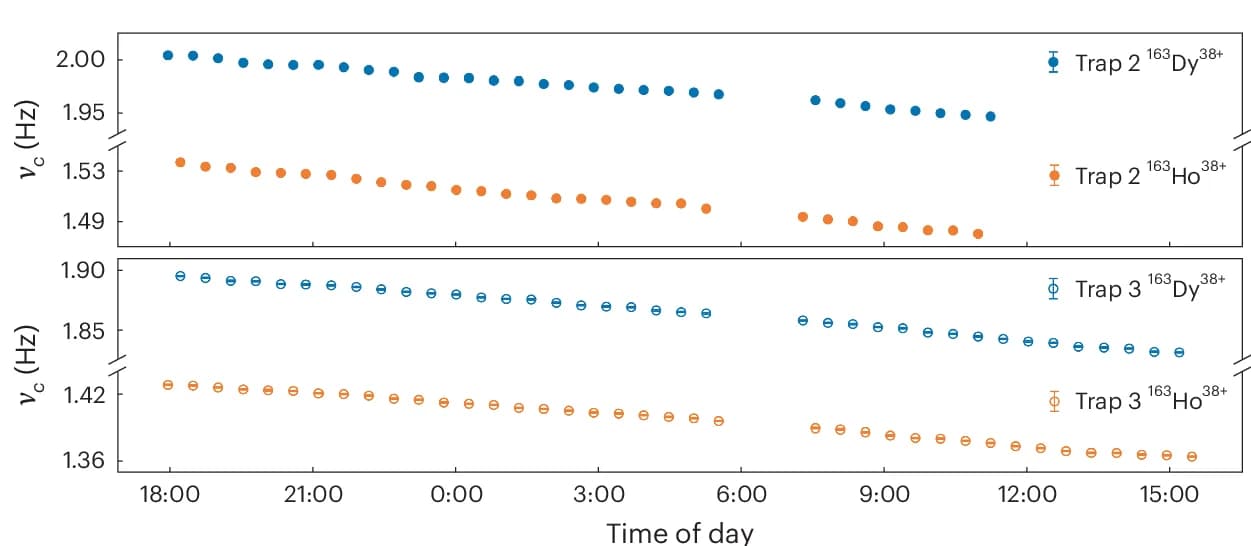

Exemplary dataset of the measured c of 163 Ho (orange) and 163 Dy (blue) in traps 2 (upper panel) and 3 (lower panel) for one measurement run in charge state q = 38 * e . For traps 2 and 3 frequency offsets of 25,081,589 Hz and 25,081,620 Hz were subtracted. The linear drift of the free-space cyclotron frequency can be attributed to the slow decay of the magnetic field of the superconducting magnet due to the flux creep effect 30 , 31 . Note that the y axis is broken for illustrative purposes and that the error bars are smaller than the data point markers.
