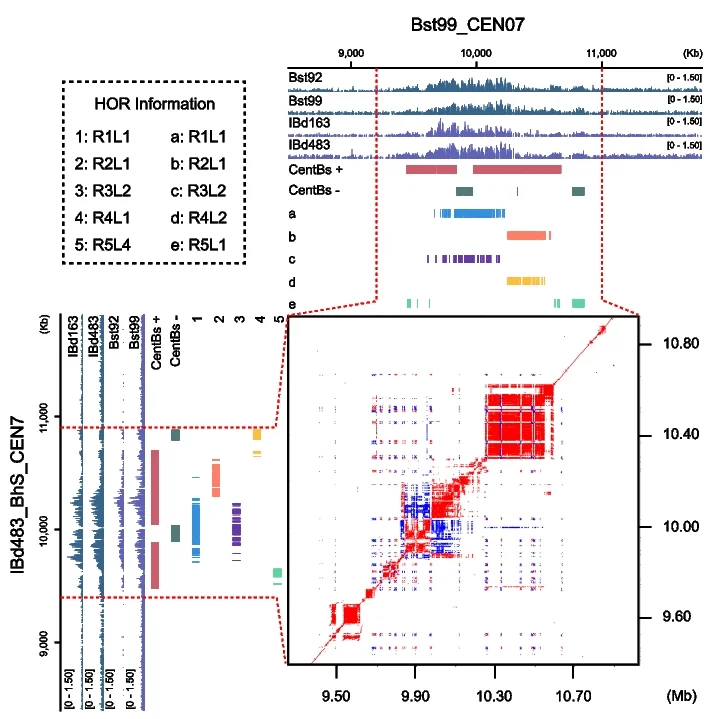

CENH3 ChIP-seq mapping coverage from diploid lines Adi-3, Bd21 ( c ) or Bst92, Bst99 ( d ), and tetraploid IBd163, IBd483 lines to Bd21-CEN ( c ) or Bst99-CEN ( d ) genome with coordinates at top. The mapping coverage from IBd163, IBd483 and Adi-3, Bd21 ( c ) or Bst92, Bst99 lines ( d ) to IBd483-CEN genome with coordinates at left side. Forward- and reverse-strand satellite monomer sequences and top five ranked HOR arrays are annotated on CEN4 ( c ) and CEN07 ( d ) (Track 511). Dot plots compare the homologous centromeres between diploid to tetraploid Brachypodium using a search window of 156 bp. Red and blue points indicate forward- and reverse-strand similarity, respectively.
