Line Plot from Scientific Research

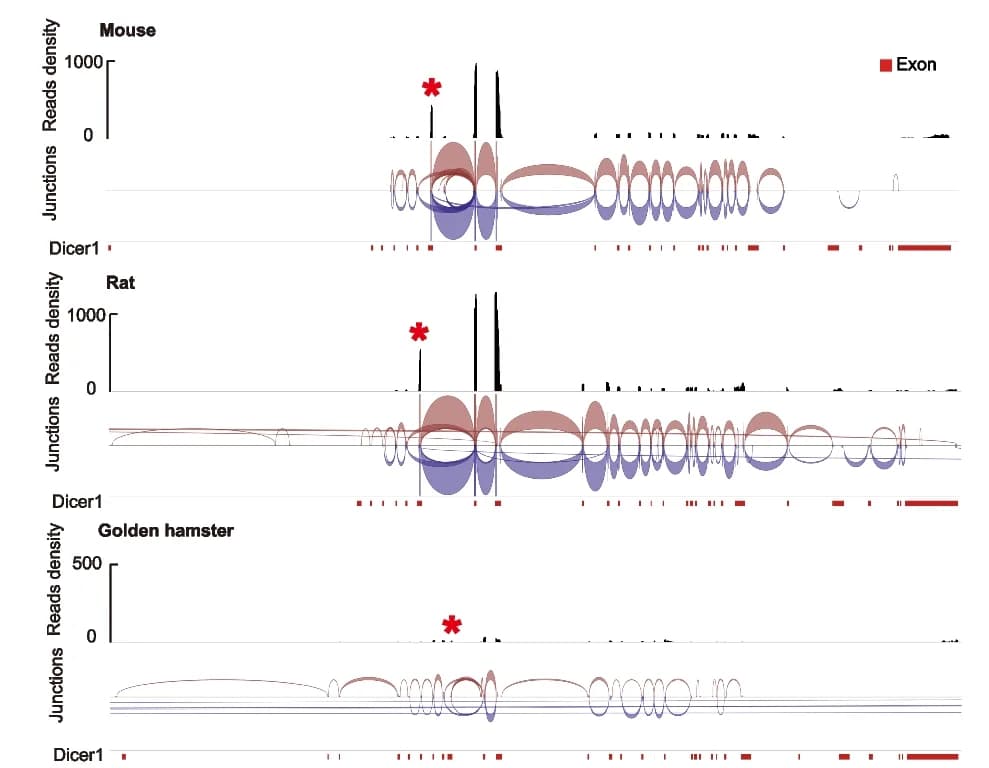

Sashimi plot of splice junctions in Dicer expressed in oocytes of mouse, rat, and golden hamster. The red asterisk indicates the RNA-seq signal of the MT-C element. IGV was used to compute the junction track from alignment data [ 38 ]. Junctions from the + strand are colored red and extend above the center line. Junctions from the - strand are blue and extend below the center line. Arc height and thickness are proportional to the depth of read coverage.
