Venn Diagram from Scientific Research

Open access visualization of Venn Diagram, WT + 3 h NF, 15aGOF and 15cGOF, 15aGOF and 15cGOF + 3 h NF, Differentially Expressed Genes
CC-BY
0
Views
0
Likes

Citation

DOI: 10.1038/s41586-024-08424-7

DOI

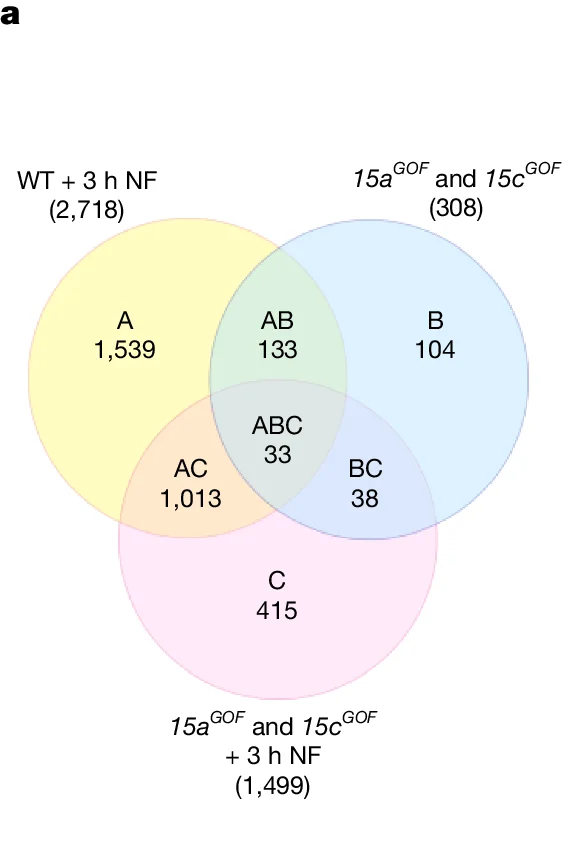

Venn diagram showing overlap of differentially expressed genes (DEGs) in cngc15a GOF (15a GOF) and cngc15c GOF (15c GOF) versus WT (308 genes), cngc15a GOF and cngc15c GOF treated with Nod factor (NF) for 3 h versus mock (1,499 genes) and WT treated with NF for 3 h versus mock (2,718 genes) (P value < 0.05).

#Venn Diagram#WT + 3 h NF#15aGOF and 15cGOF#15aGOF and 15cGOF + 3 h NF#Differentially Expressed Genes#CNGC15a GOF#CNGC15c GOF#Wild Type#Nod Factor
