Line Plot from Scientific Research

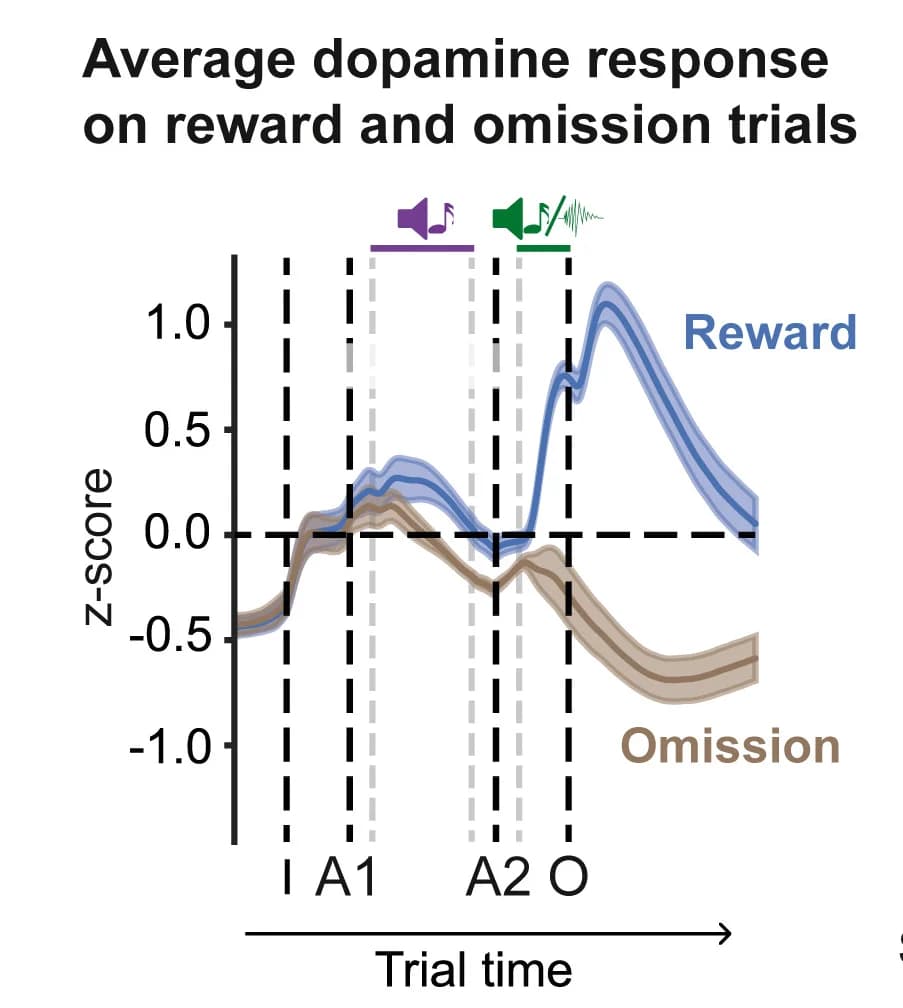

MeanZscored dopamine activity across the trial, split by outcome (reward or omission); shaded area indicates cross-subject standard error of the mean. Note that the average dopamine signal on reward and omission trials separates before the outcome cue (green bar), i.e. before information about the outcome was available, due to the influence of subject’s reward expectation.
