Line Plot from Scientific Research

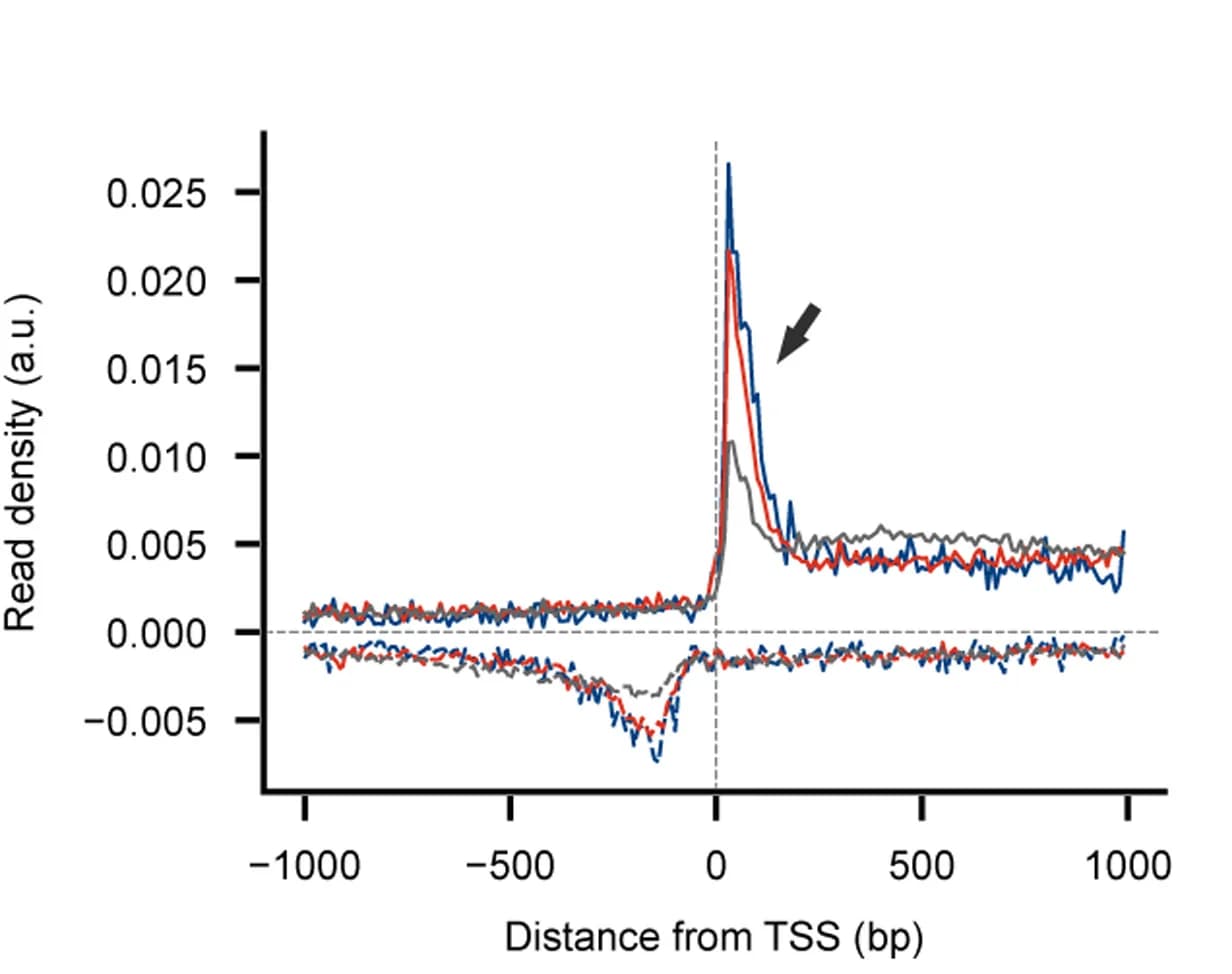

Meta-analysis of persistent backtracking (LORAX-seq) and nascent transcription (mNET-seq) from WT and TFIIS KO cells across the transcription start site (TSS) of 10,323 protein-coding genes filtered to remove overlapping transcription units. Read density in artificial units (a.u.) is calculated by dividing each window into 200 bins for sense and antisense reads, and then normalizing accumulated reads within each window to be a fraction of one. The sense and antisense strands are presented on the positive and negative y axes respectively. Arrows denote regions of interest. All LORAX-seq and mNET-seq experiments were conducted in duplicate for each condition.
