Stacked Bar Plot from Scientific Research

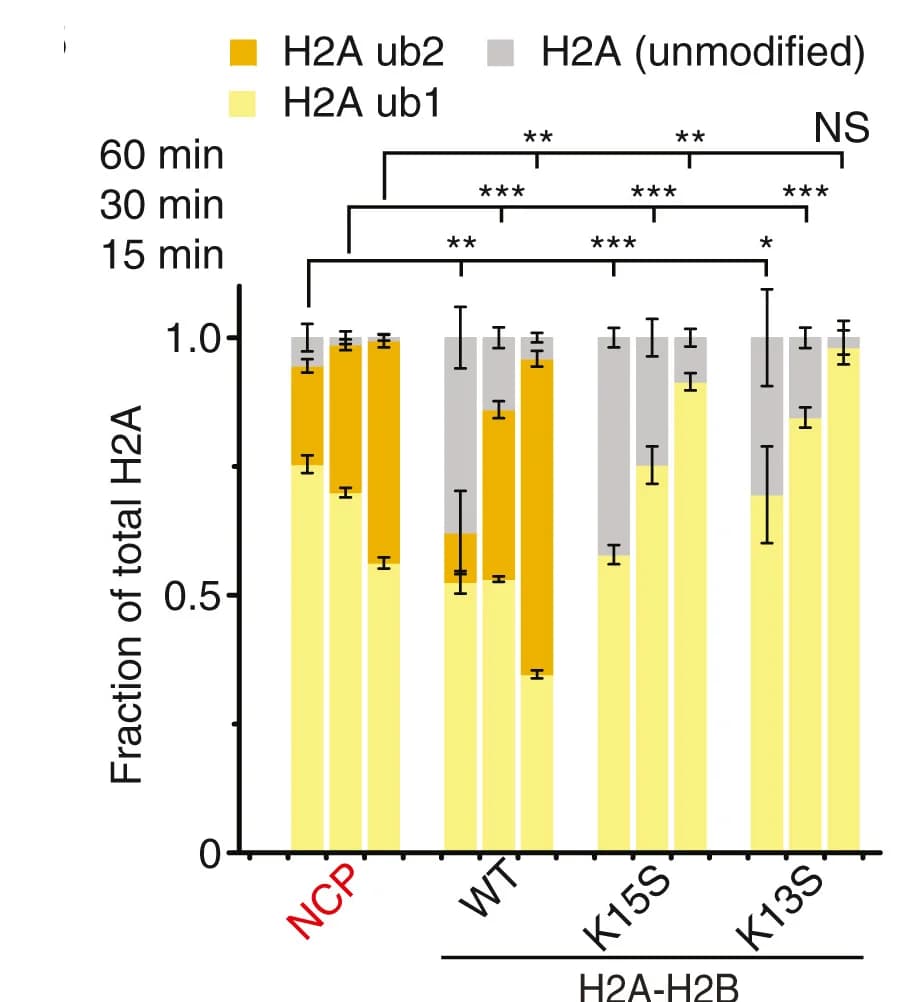

Left: quantification of the NCP or H2A-H2B (WT or mutants) ubiquitylation from n = 3 independent experiments. Bar graphs show the mean and SD for each data point. p values were calculated using a two-sample two-tailed Student t test;*p < 0.05,**p < 0.01,***p < 0.001, NS means not significant. Right: representative SDS-PAGE gels of ubiquitylation assays of the NCP, WT H2A-H2B, H2AK13S-H2B, and H2AK15S-H2B using UBA1, UbcH5c, and RNF168R.
