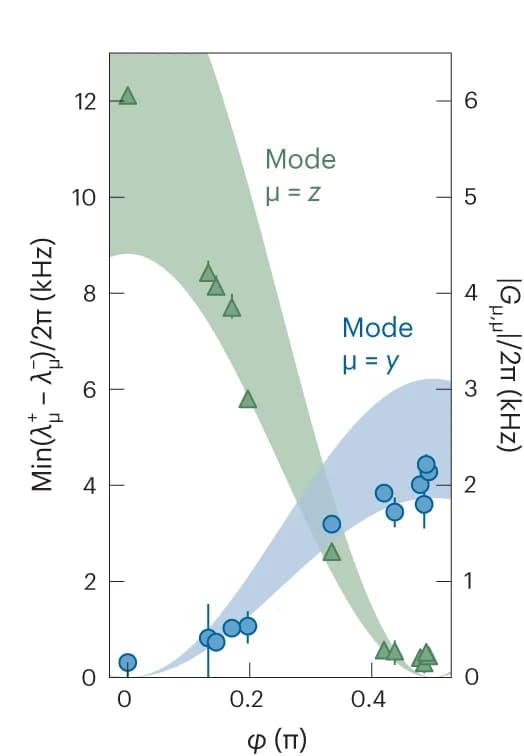

In all spectrograms, we fit the normal mode frequencies \({\lambda }_{y}^{-}\) and \({\lambda }_{y}^{+}\) (red lines). g , The splittings \(\min ({\lambda }_{z}^{{+}}-{\lambda }_{z}^{-})\) (green triangles) and \(\min ({\lambda }_{y}^{{+}}-{\lambda }_{y}^{-})\) (blue circles) as extracted from the fits with error bars corresponding to three s.d. of the fit around the extracted splitting values. Strong z coupling at the antinodes ( φ = 0) transitions to strong y coupling at the nodes ( φ = π/2). Shaded areas show G z , z (green) and G y , y (blue) from system parameters and their uncertainties.
